A guide to your Dyson Gen5detect™ cordless vacuum

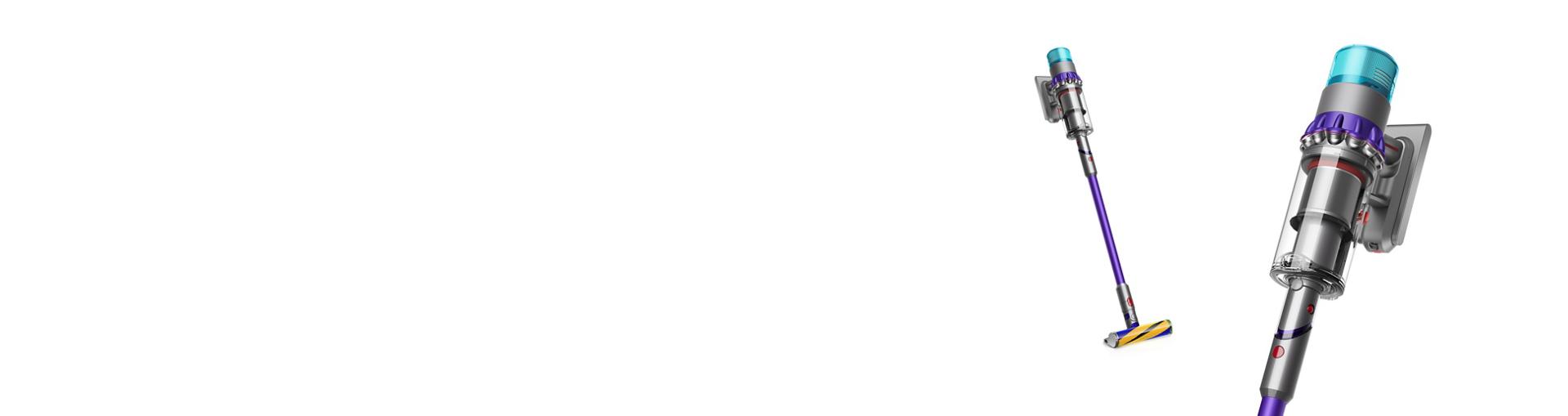

The Dyson Gen5detect™ vacuum shown full length, and a close up of the manifold.

Getting started    User manual    LCD screen    Power modes    Cleaner heads    Accessories    Battery    Maintenance

Register your machine

Register now to activate your guarantee, and for instant access to how-to guides, user manuals, and more. You can also receive tailored support, straight to your inbox.

Register your machine
Troubleshoot
Replacement parts

Getting started

How to set up your Dyson Gen5detect™ vacuum

Watch our video guide to setting up your Dyson Gen5detect™ vacuum.

1Some tools may not be included

User manual

User manual

Donwload the use manual for your Dyson Gen5detect™ vacuum cleaner.

31.7MB

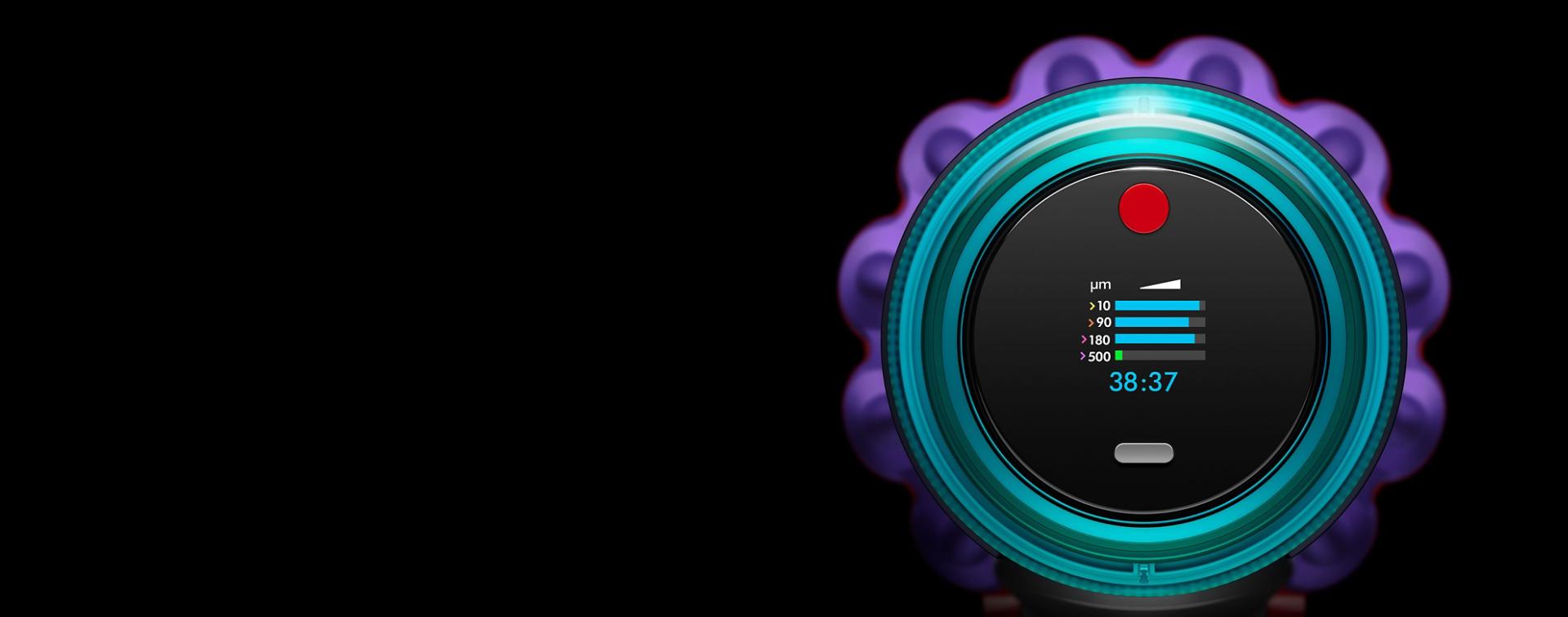

LCD screen

Beginning your clean

Your machine constantly measures the microscopic particles being picked up. These are displayed in a graph, grouped into four colour-coded size ranges: Microscopic, Fine, Medium, Coarse.

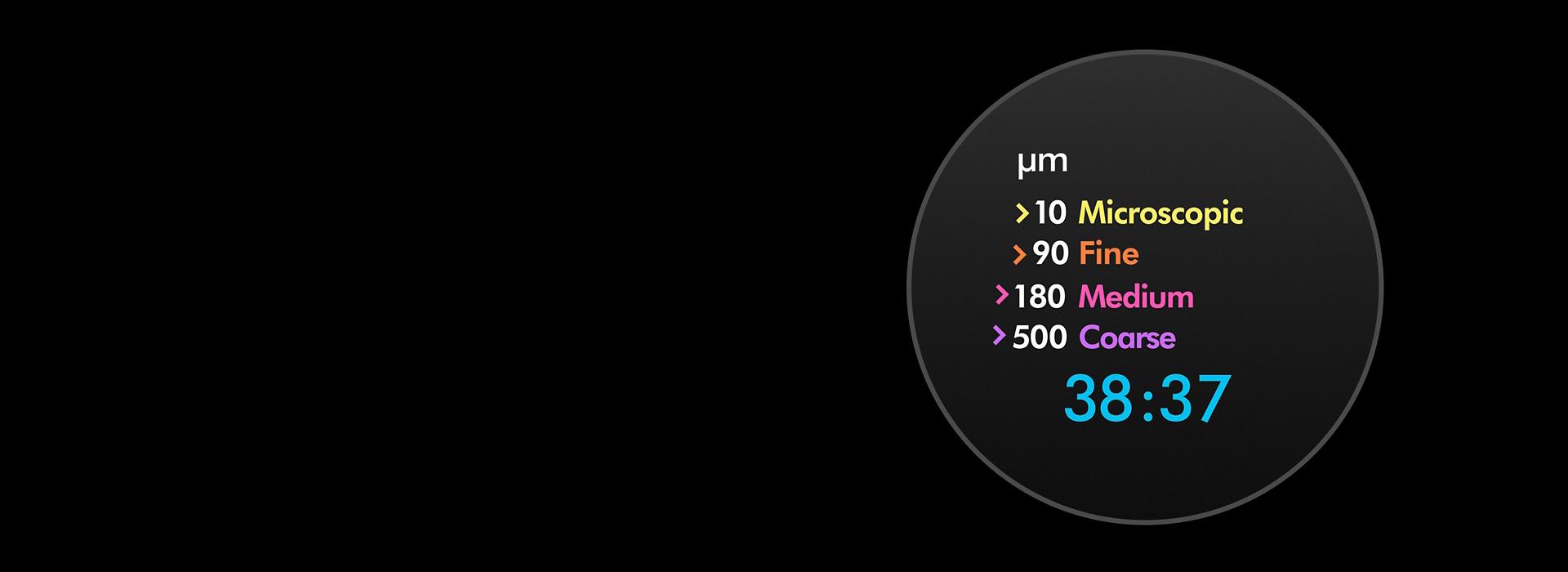

Graph displaying Microscopic, Fine, Medium, and Coarse particle sizes.

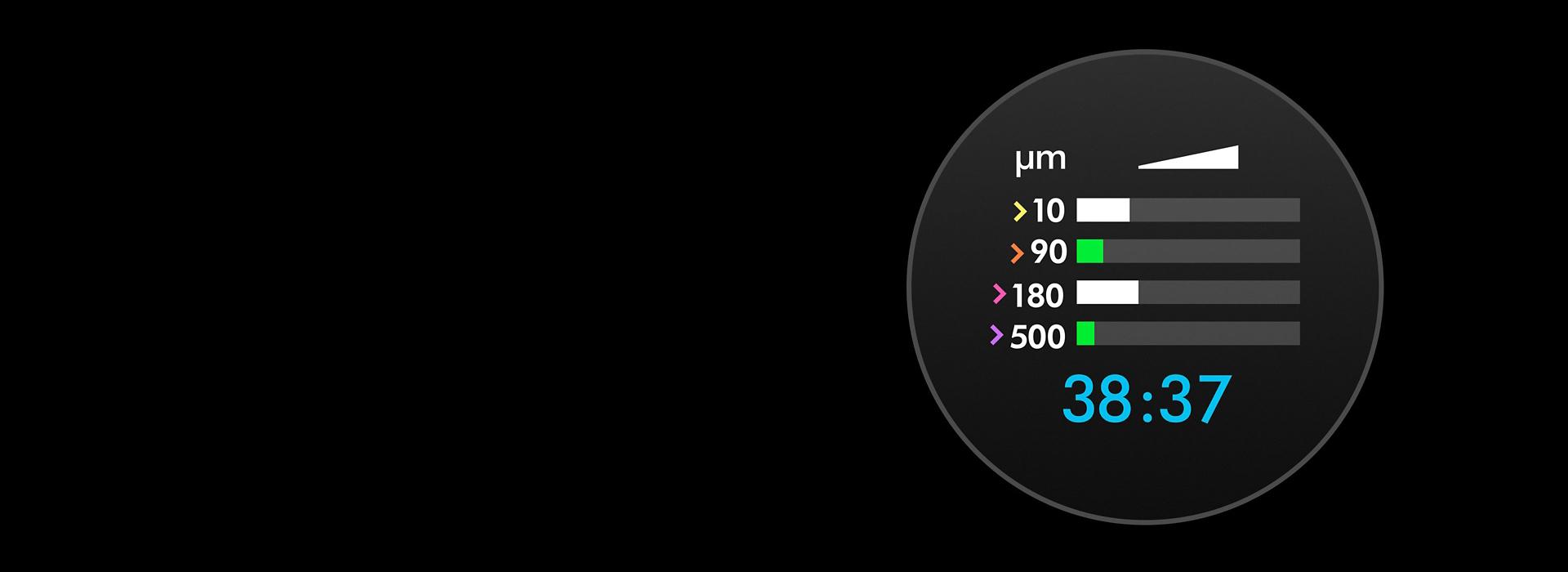

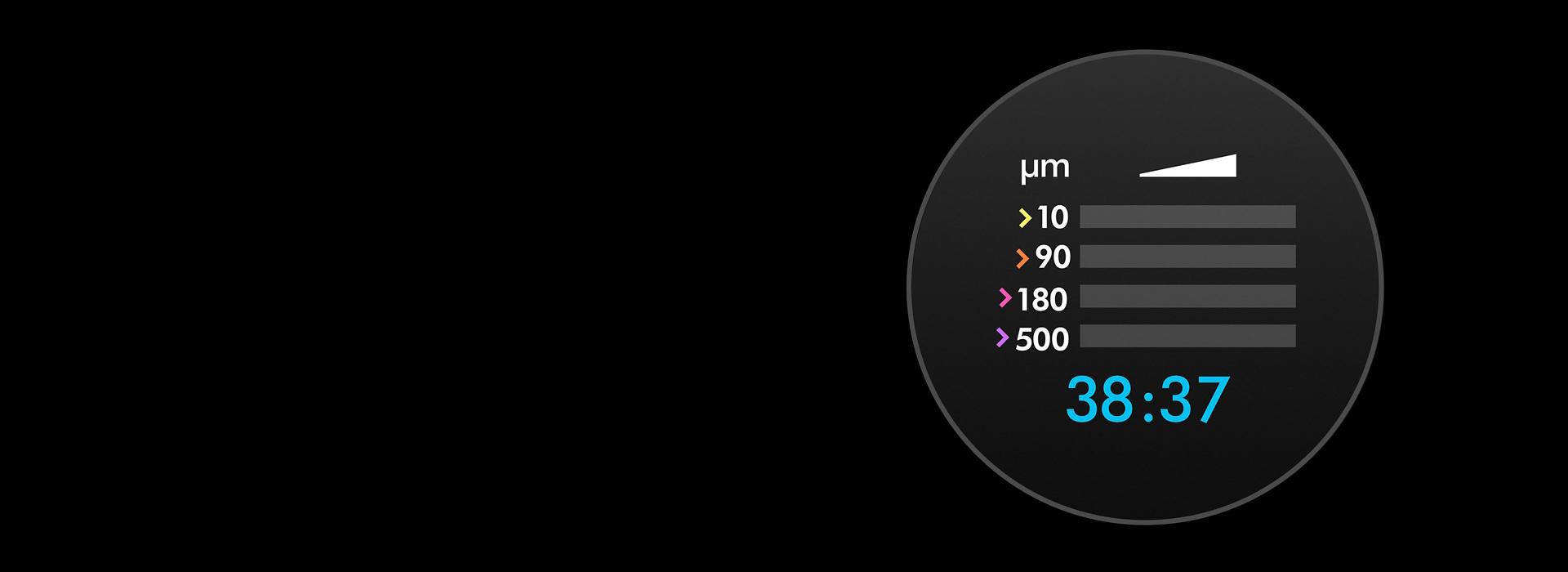

How the bars work

The bars grow and shrink, in real time, based on the volume of particles being removed as you clean. So you know when to keep cleaning, and when your floor area is clean.

What the bars mean

In Auto mode
Blue bars: High volume, increased suction
White bars: Medium volume
Green bars: Low volume, you can move on from that spot
In all other modes, white bars also represent a high volume of particles.

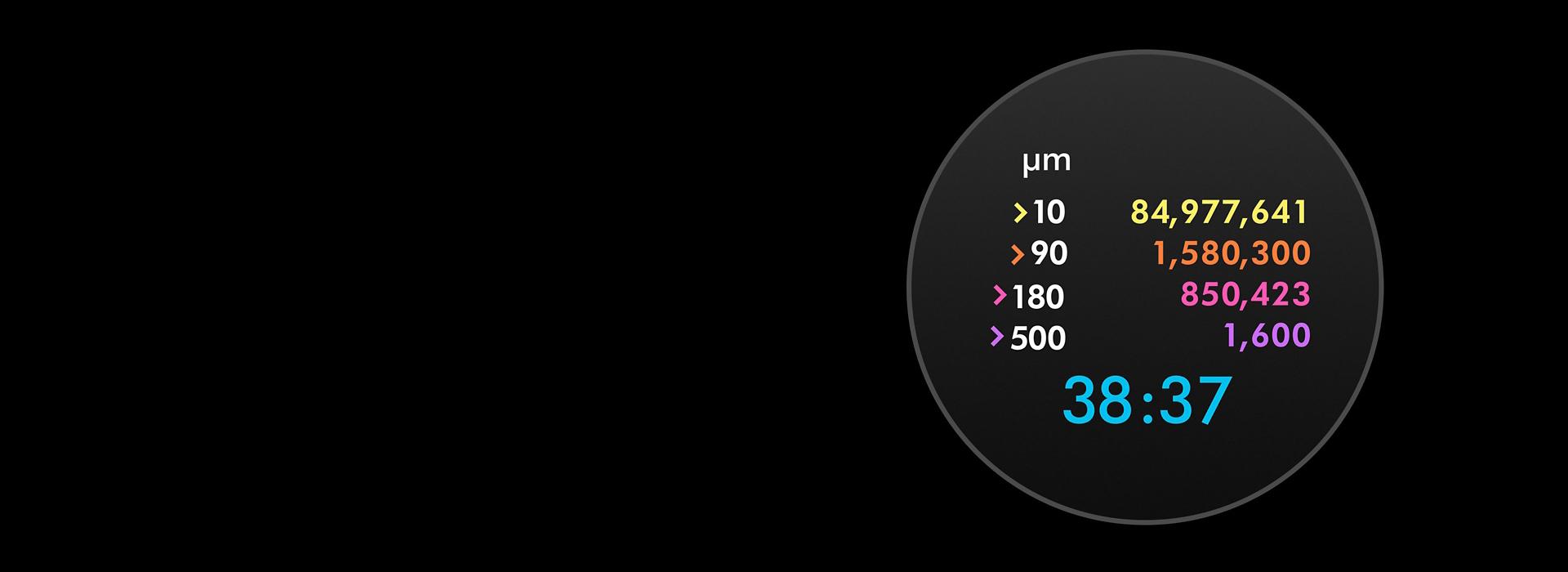

After your clean

At the end of your clean, the screen displays a summary of the particles that have been removed. Giving you scientific proof of a deep clean.

FAQs about the LCD screen

The particle count is a scientific measurement of the debris in your bin. Each bar represents a different size of dust particle. The bars rise faster when more debris of that size is vacuumed.

Reactive suction power works with all powered attachments when in auto mode, including the Digital Motorbar™ cleaner head, the Fluffy Optic™ cleaner head, and the Hair screw tool.

Yes. The graph works independently of the attachments, and can be used with all cleaner heads, tools and accessories.

The bars on the graph will slow down and turn green to show that less debris is being picked up, letting you know your area is clean.

Power modes

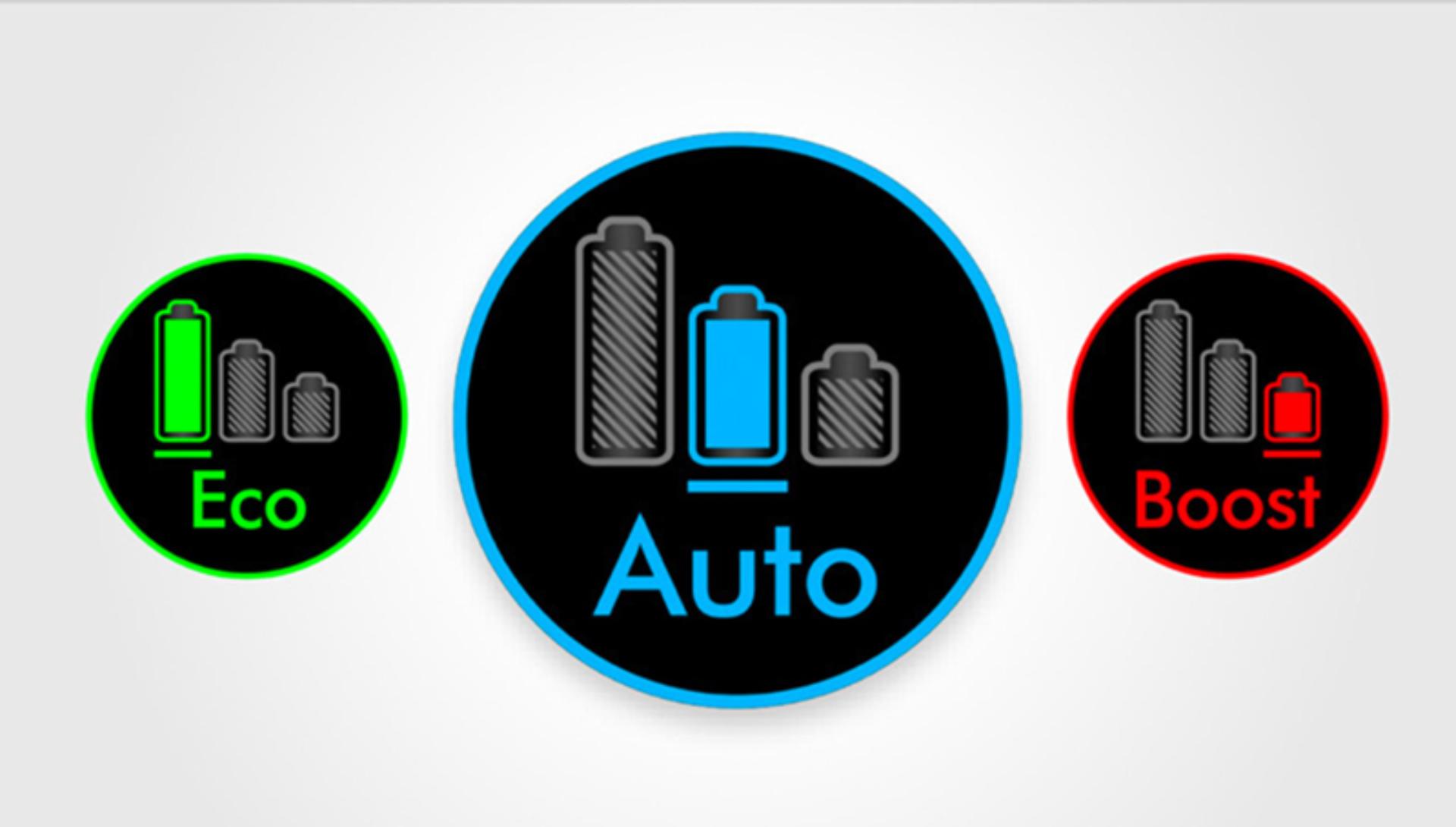

  • Getting to know your power modes

    Your Dyson Gen5detect™ has three power modes for different tasks. Simply change the power mode using a single button.

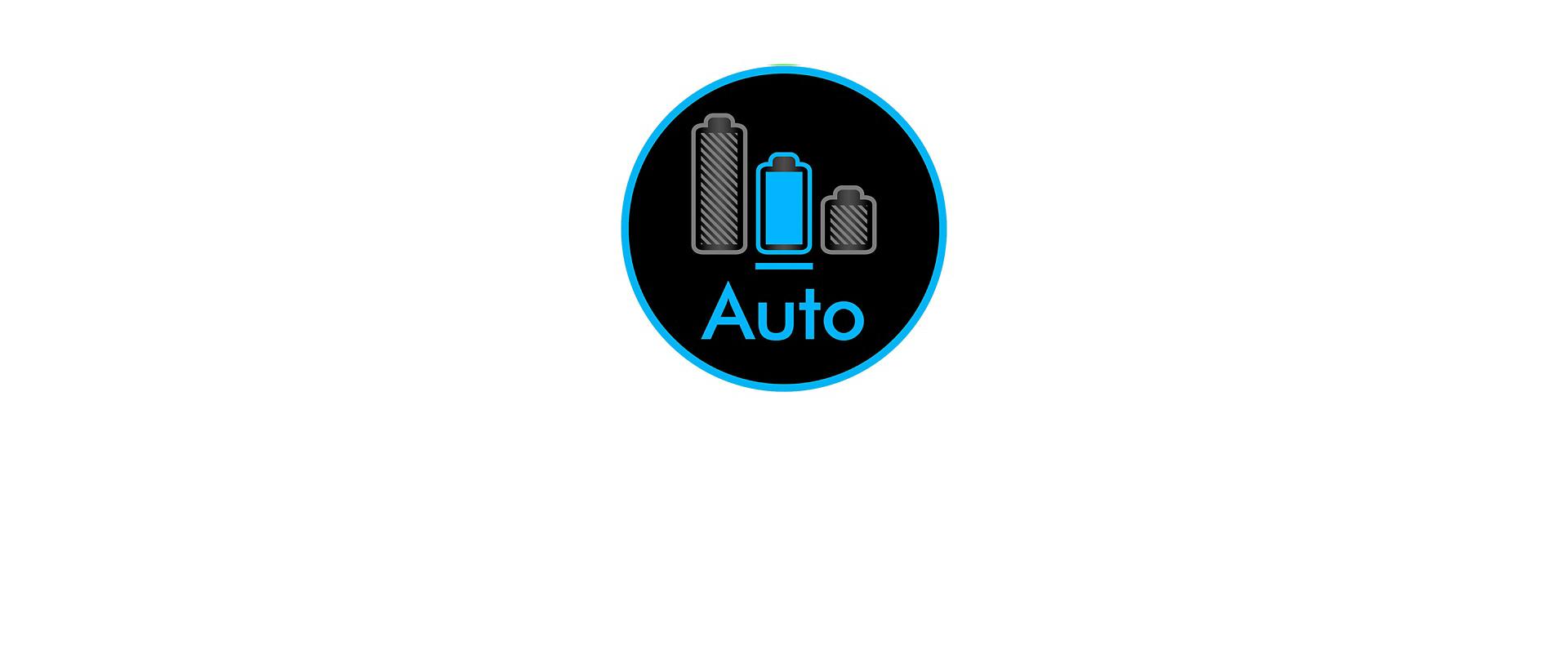

Auto mode

The optimum balance of power and run time. Attach your cleaner head or Hair screw tool to activate Auto mode. Suction power automatically adapts to dust levels.

The blue Auto mode indicator

Eco mode

Eco mode indicates the longest battery life of the three modes, giving you maximum run time for longer cleans all around your home.

The green Eco mode indicator.

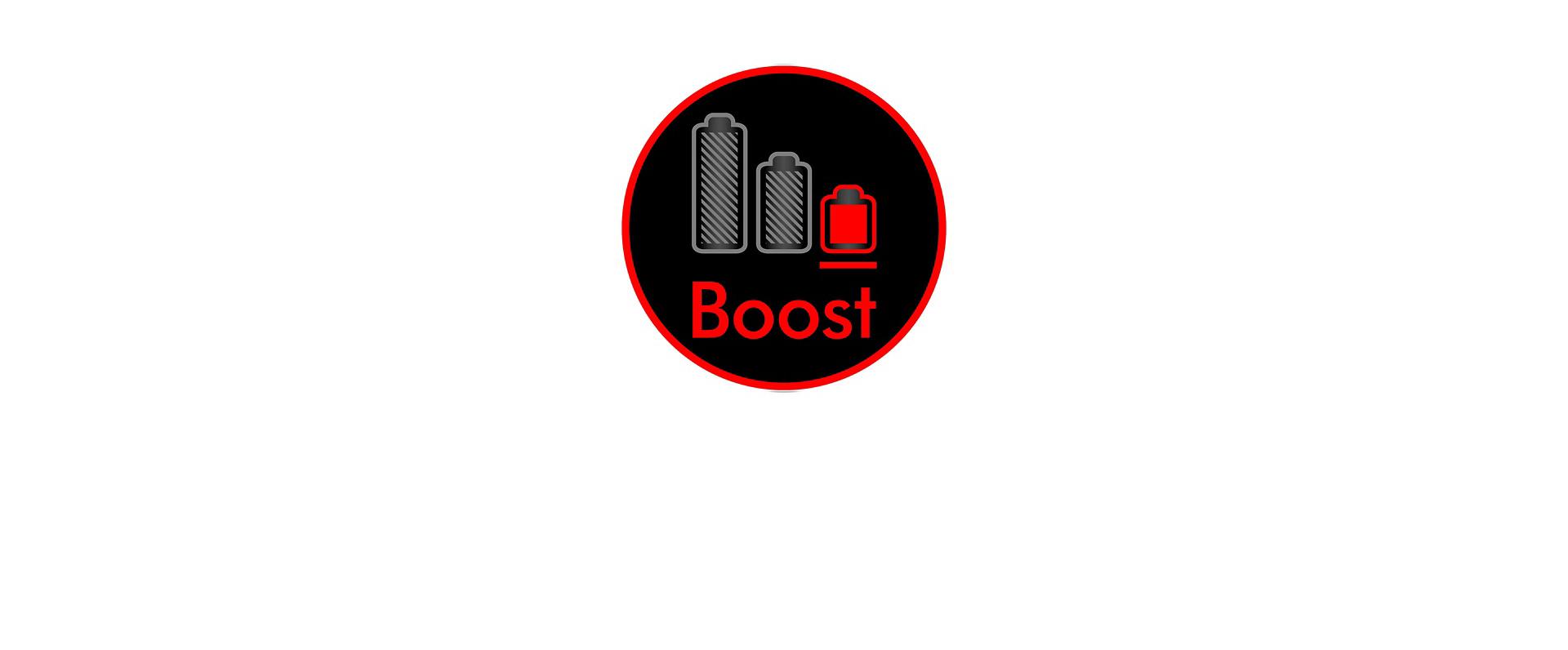

Boost

Boost indicates the shortest battery life of the three modes. Designed for intensive spot cleaning of ground-in dirt.

The red Eco mode indicator.

Intelligent suction power

Dyson recommends auto mode for the best experience. Suction power automatically increases when higher concentrations of dust are detected. Once the dust is removed, power returns to normal to conserve the battery.

Cleaner heads

Getting to know your cleaner heads

Your Dyson Gen5detect™ vacuum is engineered to operate with two cleaner heads, for different floor surfaces.

  • Digital Motorbar™ cleaner head switching from a hard floor to a carpet.

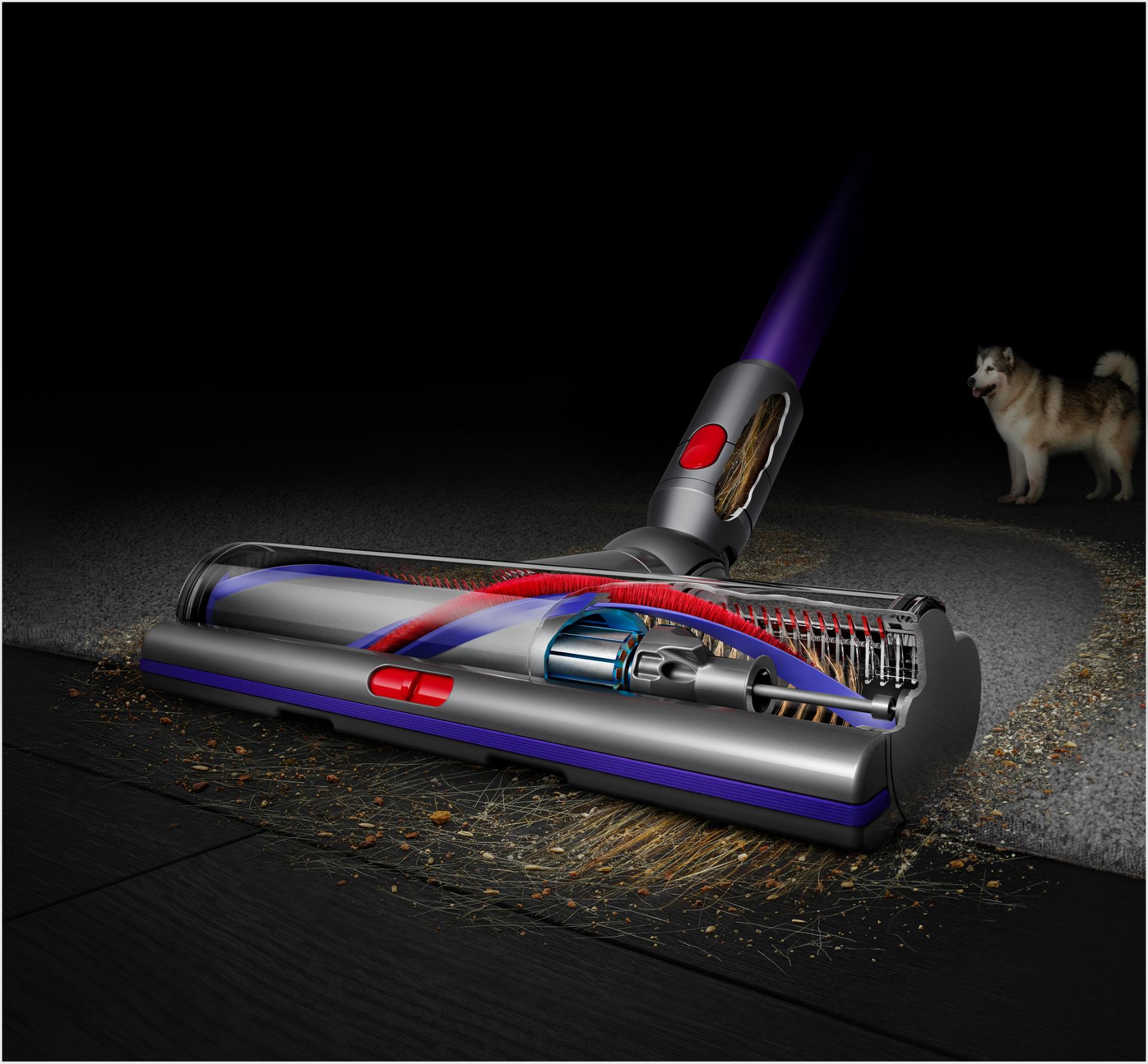

    Digital Motorbar™ cleaner head

    The Digital Motorbar™ cleaner head's Dynamic Load Sensing technology intelligently adapts suction power to different floors, while in Auto mode. Hair removal vanes automatically de-tangle hair from the brush bar as you clean.

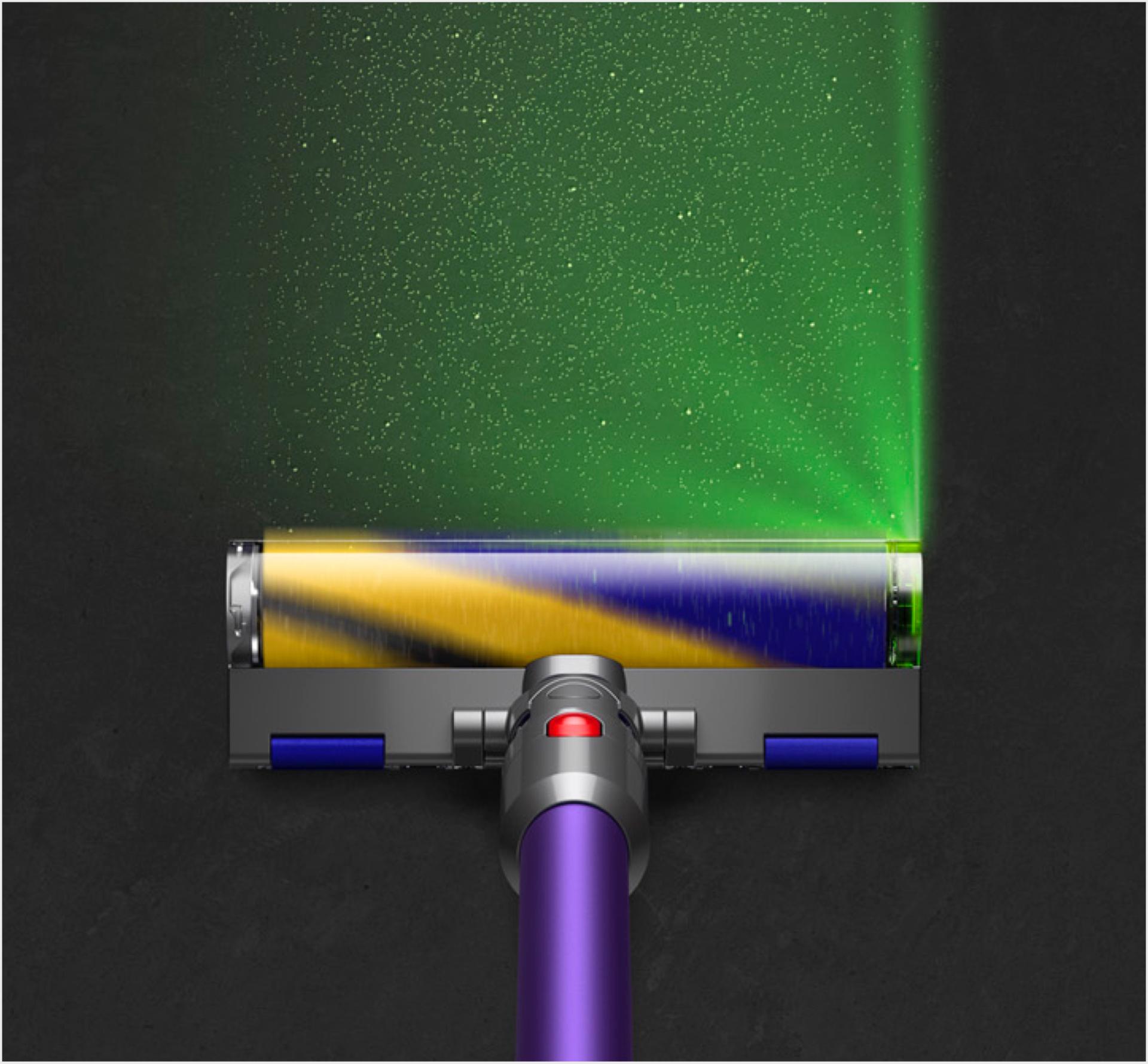

  • Fluffy Optic™ cleaner head illuminating dust on a hard floor.

    Fluffy Optic™ cleaner head

    New Fluffy Optic™ cleaner head illuminates the microscopic dust and dirt on hard floors. Anti-static carbon fibre filaments remove fine dust from hard floors and narrow gaps.

FAQs about cleaner heads

The blade of light is optimised to work on any smooth, hard floor – including white surfaces and wood laminate. Illumination is visible in most well-lit spaces. Direct sunlight (around 10,000+ lux) is not possible to outshine.

Yes.

The de-tangling comb on the brush bar has 56 polycarbonate teeth to prevent tangling around the bristles. The comb is always in contact with the brush bar as it spins to prevent wrapping, so hair is sucked straight into the bin.

Accessories

Dyson Gen5detect™ accessories

Your Dyson Gen5detect™ vacuum is equipped with Dyson-engineered tools to help you clean every surface and space around your home.

  • Dyson Gen5detect™ Built-in dusting and crevice tool

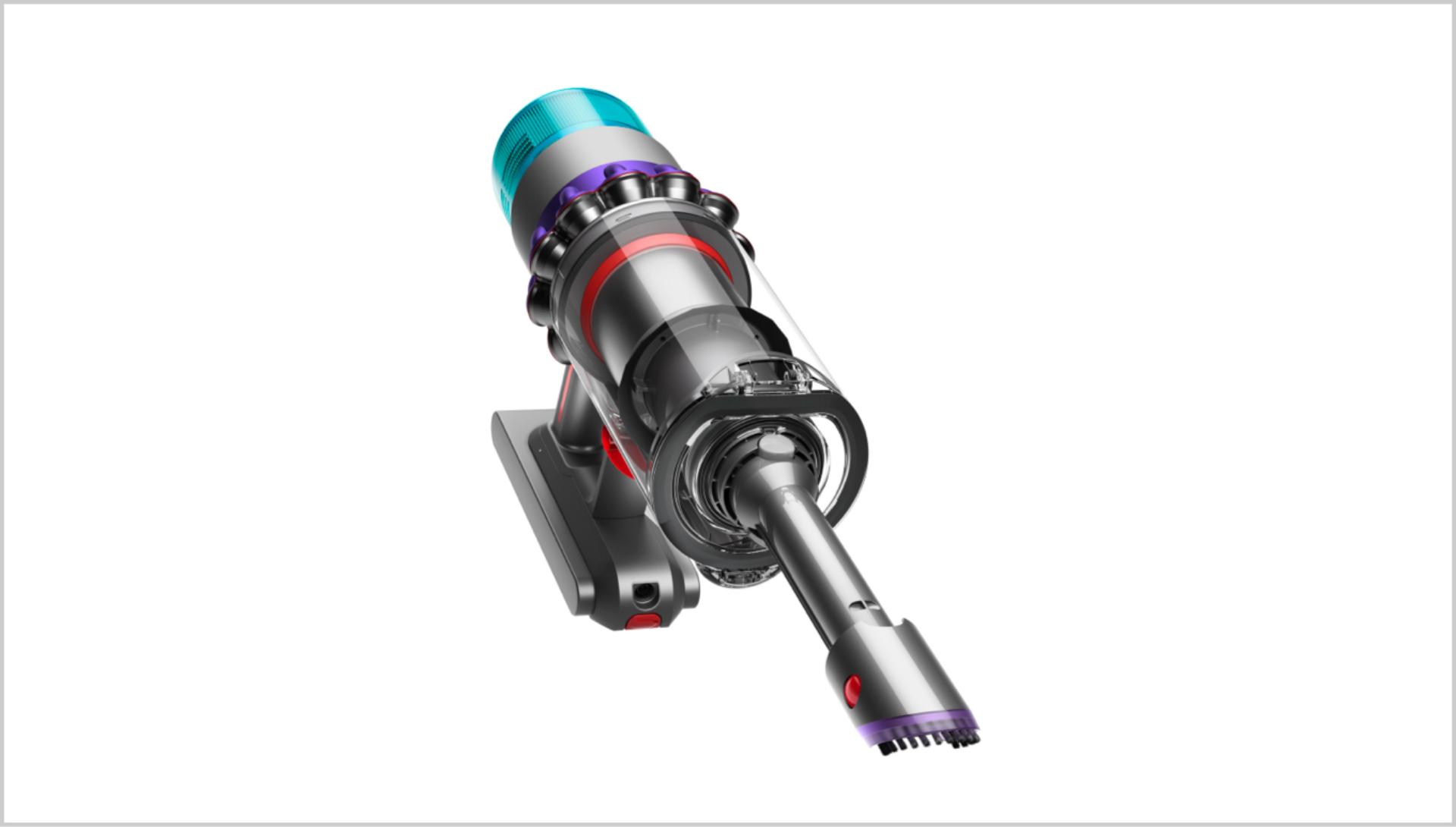

    Built-in dusting and crevice tool

    Transforms to a handheld in a click. The Built-in dusting and crevice tool is always at your fingertips for on-the-spot cleans.

  • Hair screw tool removing hair from a mattress.

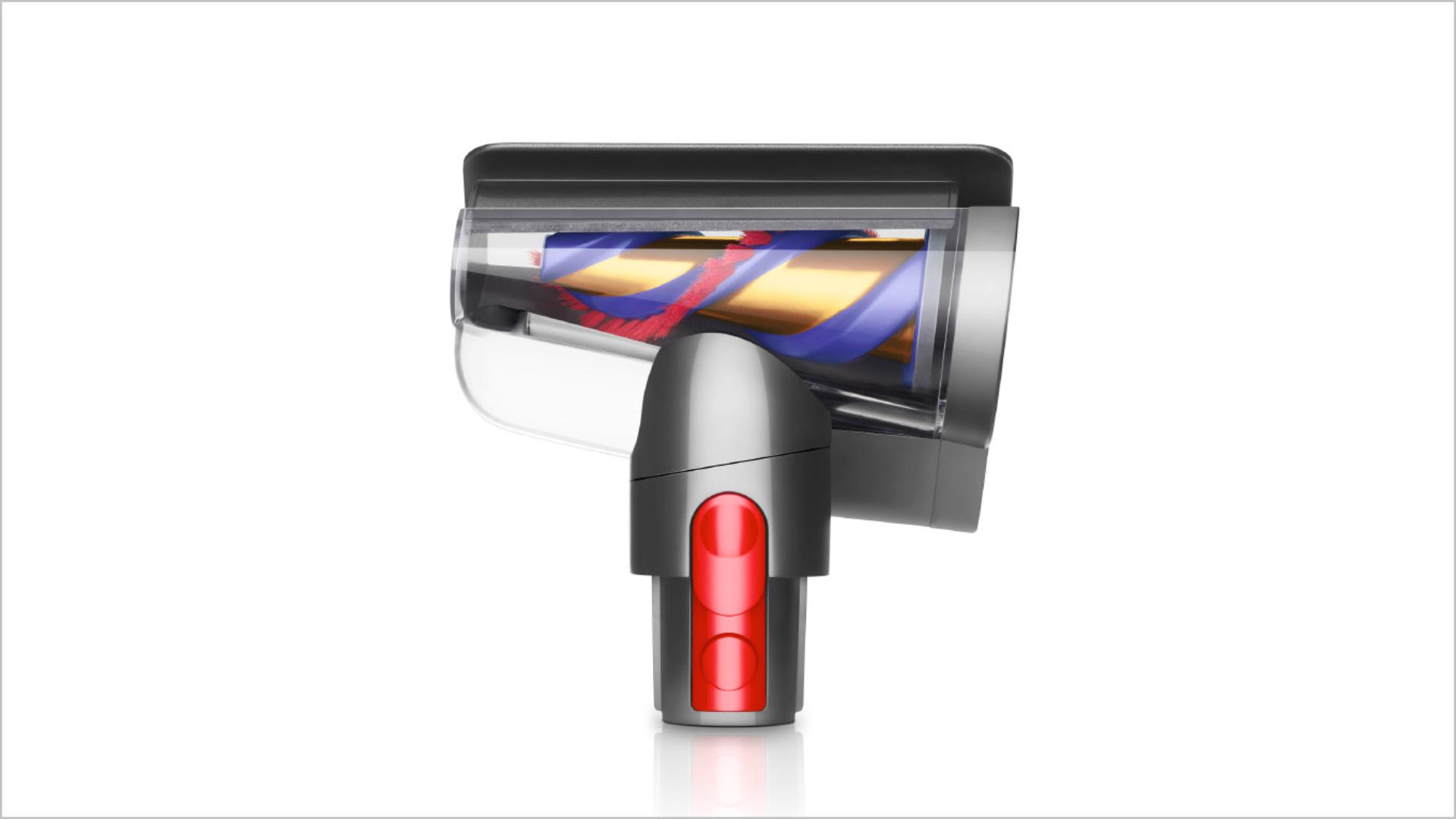

    Hair screw tool

    Removes dust and hair from pet beds, mattresses and stairs. The de-tangling conical brush bar spirals hair straight into the bin – fast.

  • Combination tool removing debris from a floor.

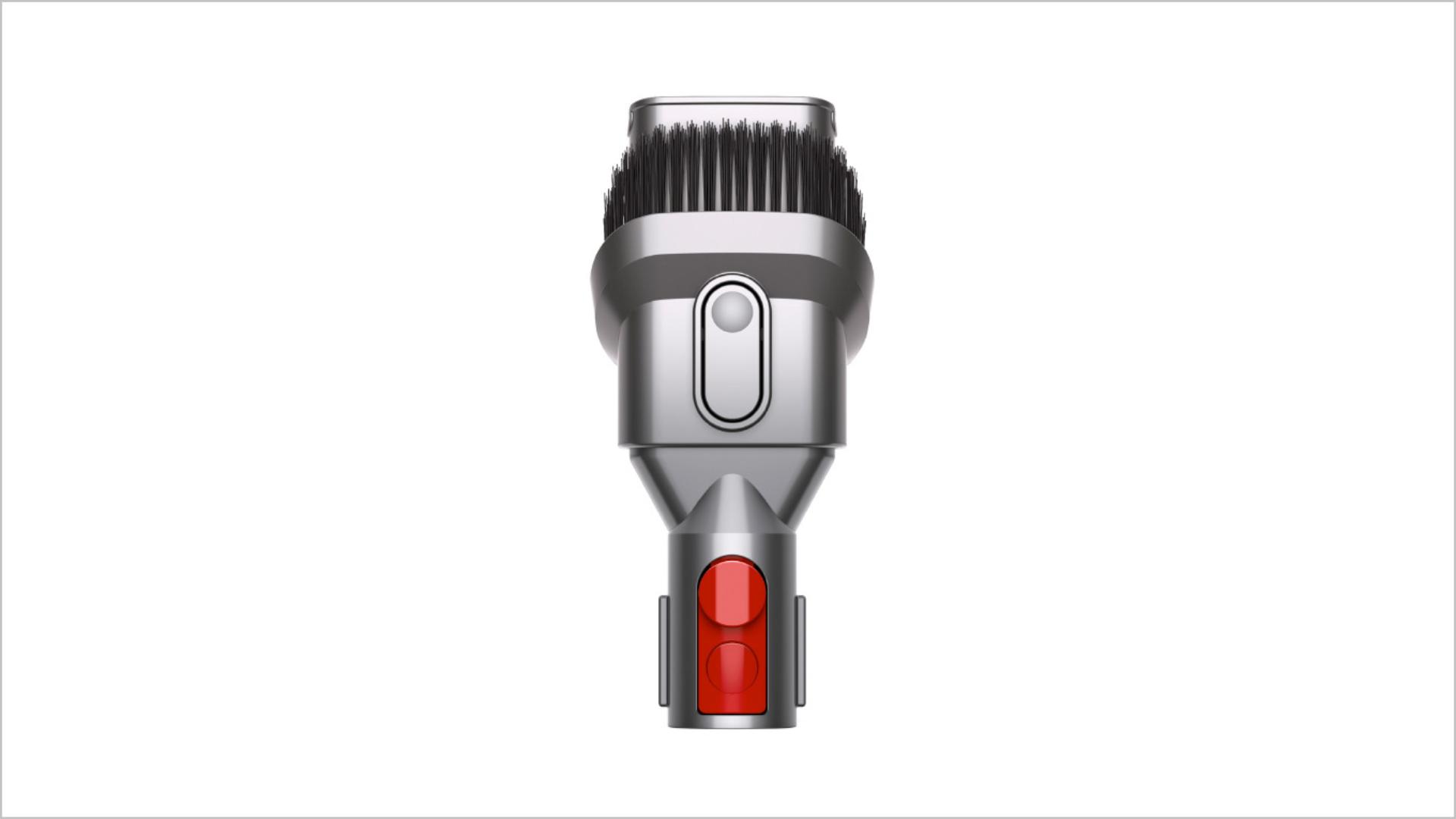

    Combination tool

    Two tools in one. For quick switching between cleaning and dusting, all around your home.

Need a different tool?

If you need attachments for other cleaning tasks around your home, click below to view the wide range of Dyson-engineered tools and accessories.

Shop now
Woman shown in four positions in a living room, using the Dyson Gen5detect™ as both a cordless stick and a handheld vacuum.

Dock set up and charging

*Only one dock type will be included in the box

Setting up your wall dock

Before setting up your wall dock, please: 1. Read all of the instructions carefully. 2. Download the user manual.

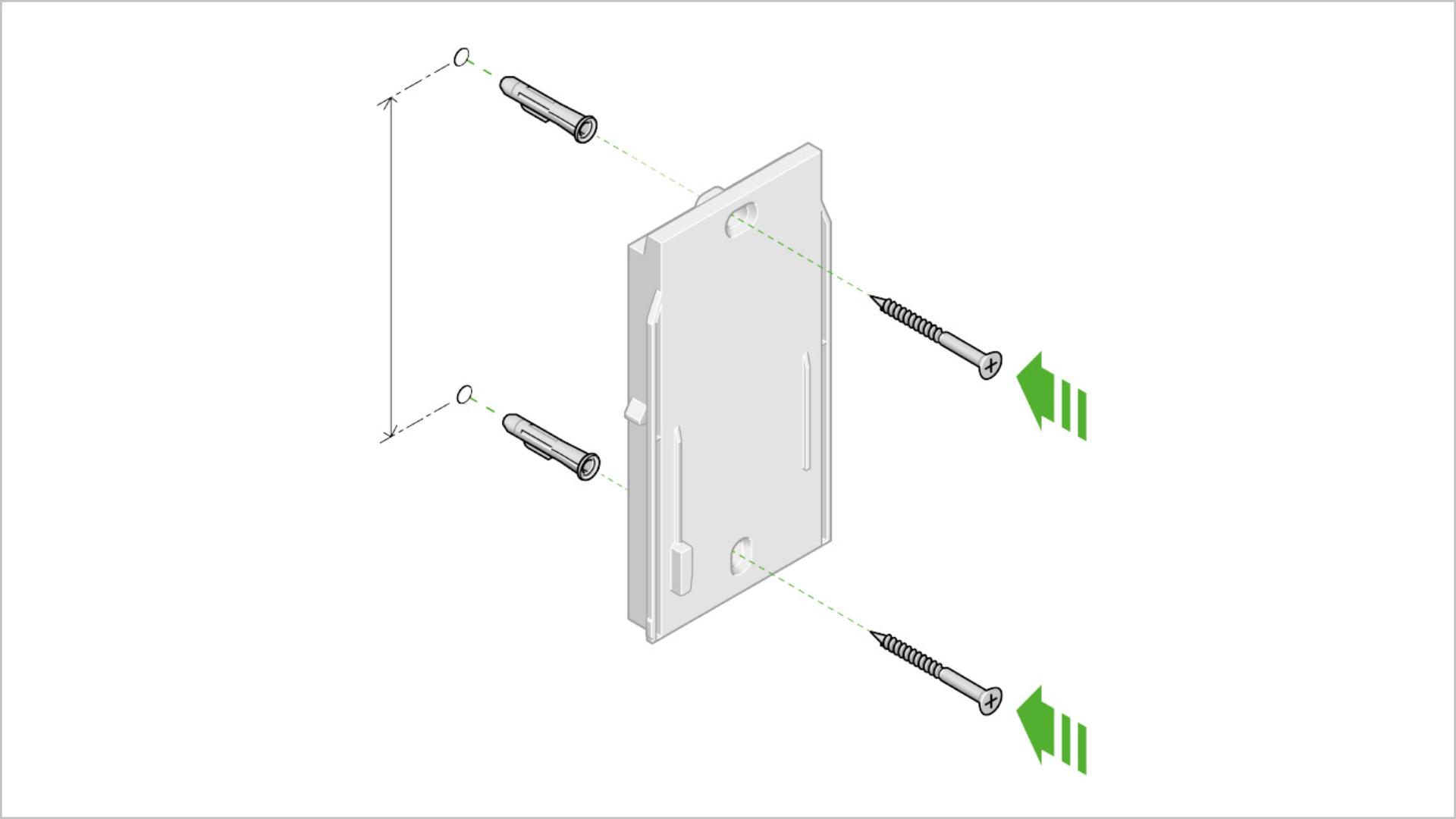

  • Step 1. Secure the backplate

    Use the two holes in the backplate to mark out drill holes in the wall, at the minimum recommended height. Use the supplied 2 wall plugs and 2 screws to secure the backplate to the wall.

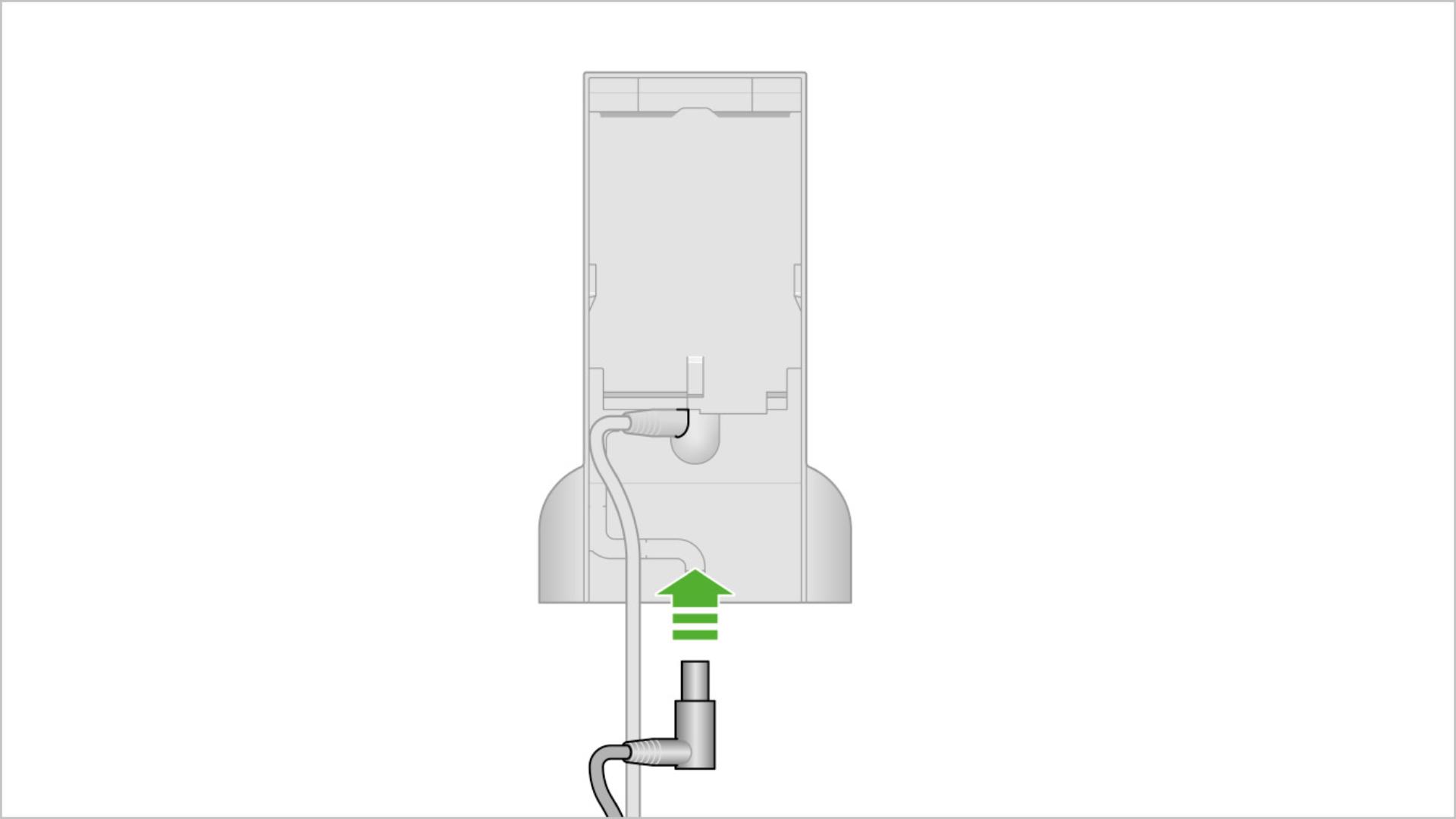

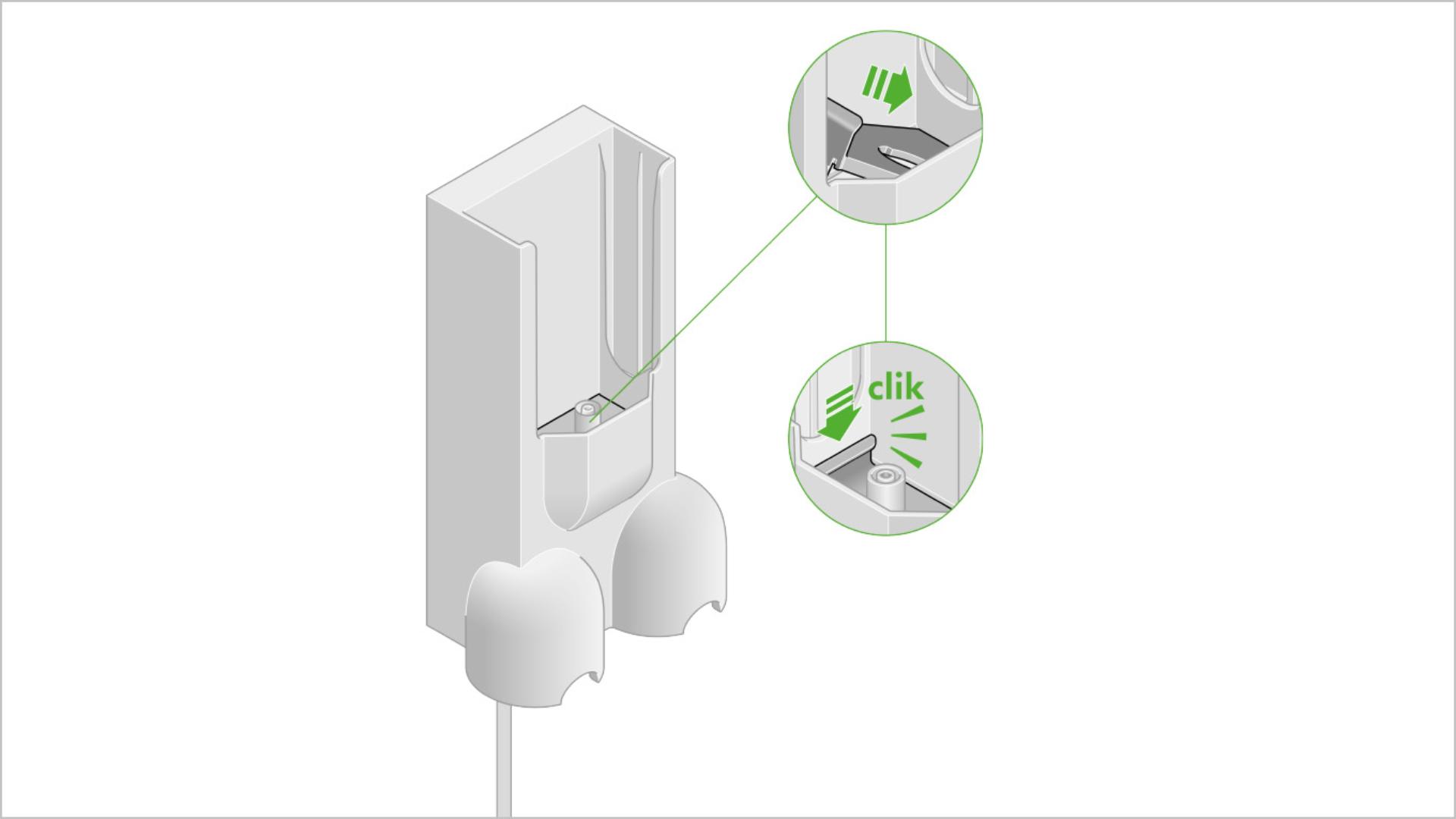

  • Step 2. Connect the dock

    Slide the dock onto the backplate. Position the jack plug in the front casing. Make sure the charging cable is secured behind the front casing.

  • Step 3. Charge your machine

    Push the jack cover down to firmly secure the plug. Switch on the power. Mount your Dyson Gen5detect™ vacuum in the wall dock to begin charging.

Setting up your floor dock

Before setting up your floor dock, please: 1. Read all of the instructions carefully. 2. Download the user manual.

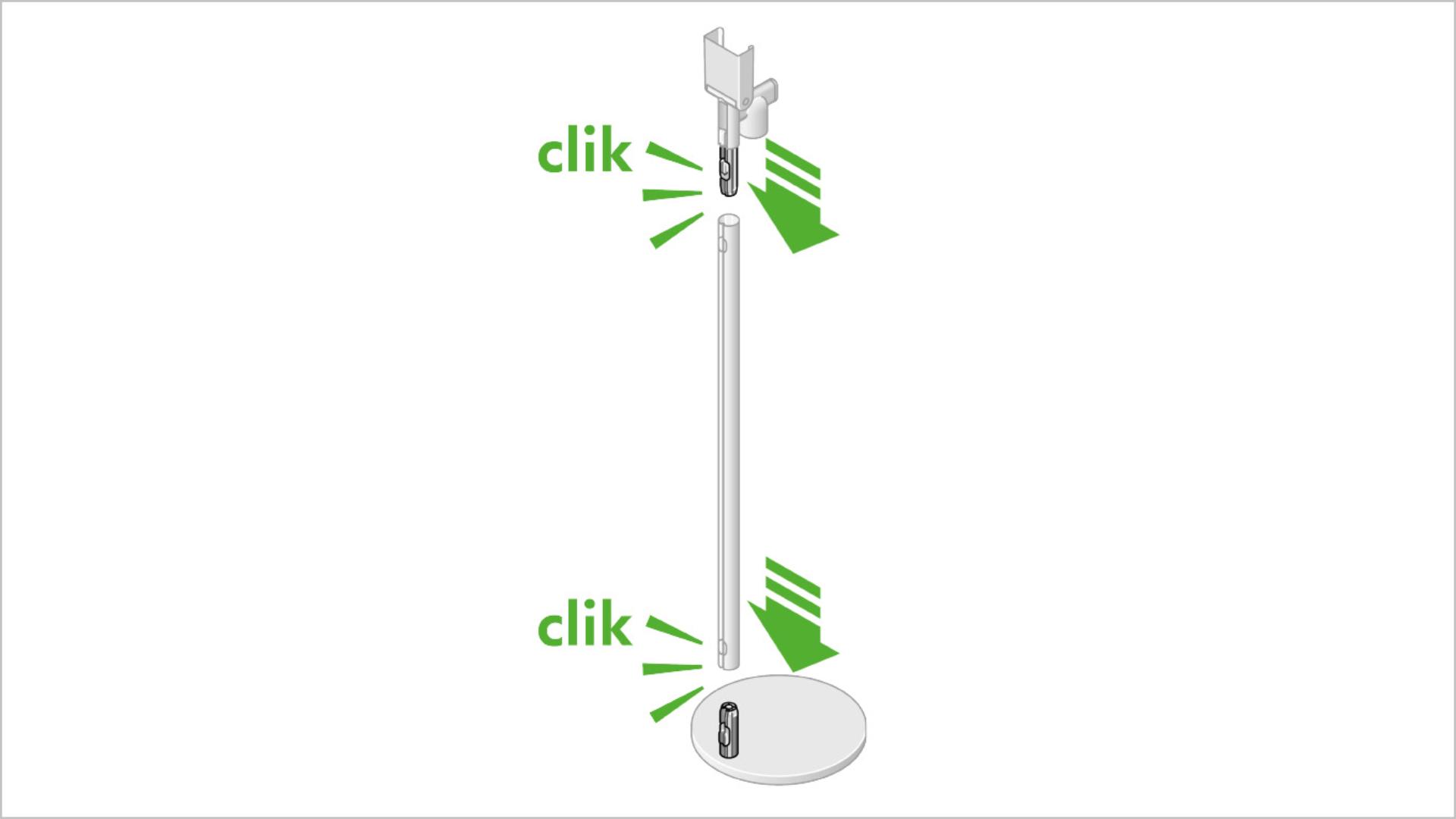

  • Step 1. Assemble the dock

    Place the base unit in a convenient position. Simply click the verticle stem into place. Next, click the charging cradle into place on top.

  • Step 2. Set up the charger

    Run your charging cable connector through the hole located behind the docking cradle. Next, place the connector cover to secure it in place.

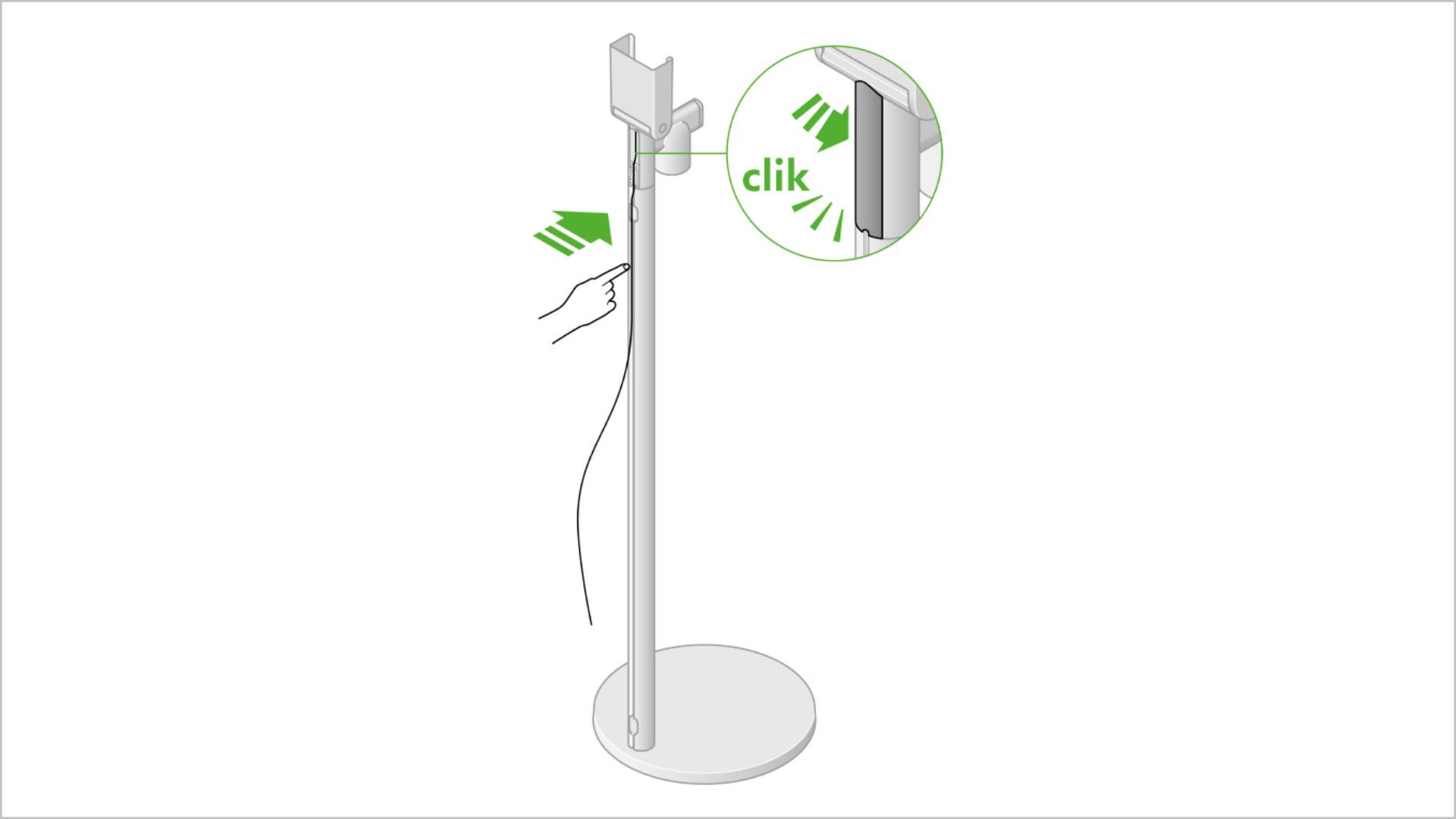

  • Step 3. Tidy the cable

    Push the charging cable into the cable tidy channel on the back of the vertical stem.

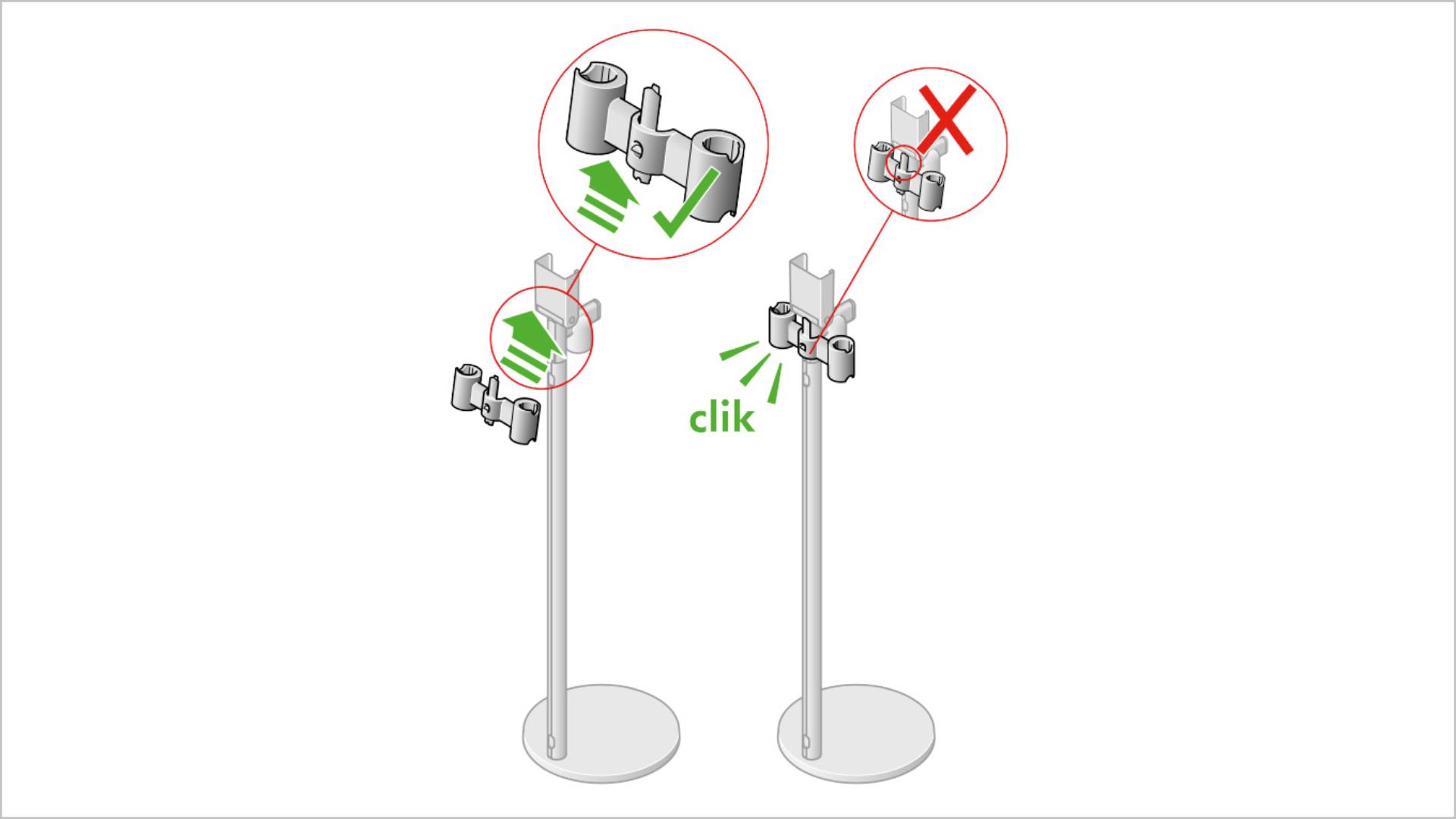

  • Step 4. Attach the accessory holder

    Fit the accessory holder into the back of the charging cradle. You can now store up to 6 accessories on the dock.

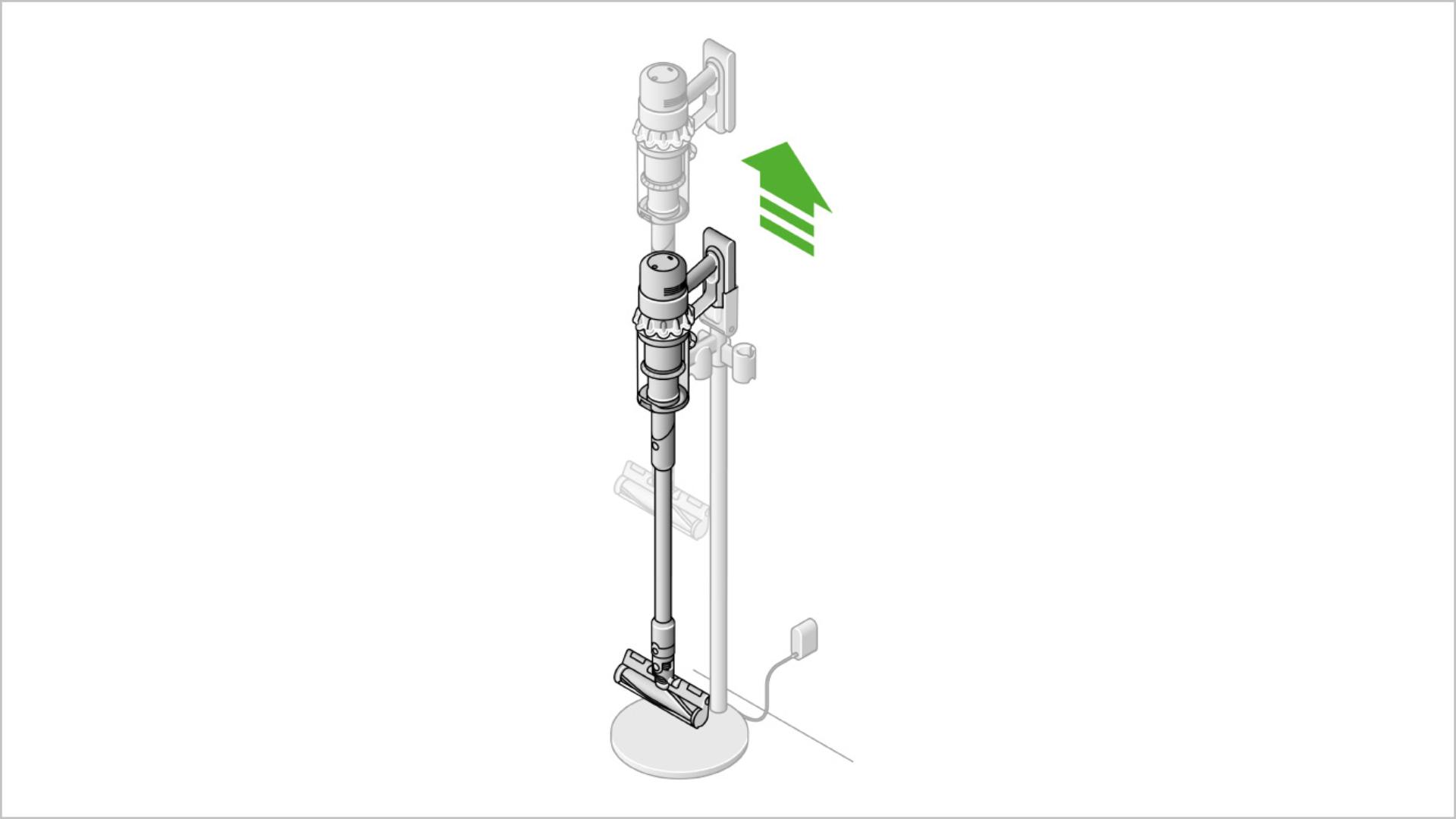

  • Step 5. Charge your vacuum

    Plug in your charger and place your vacuum on the dock to charge.

Battery

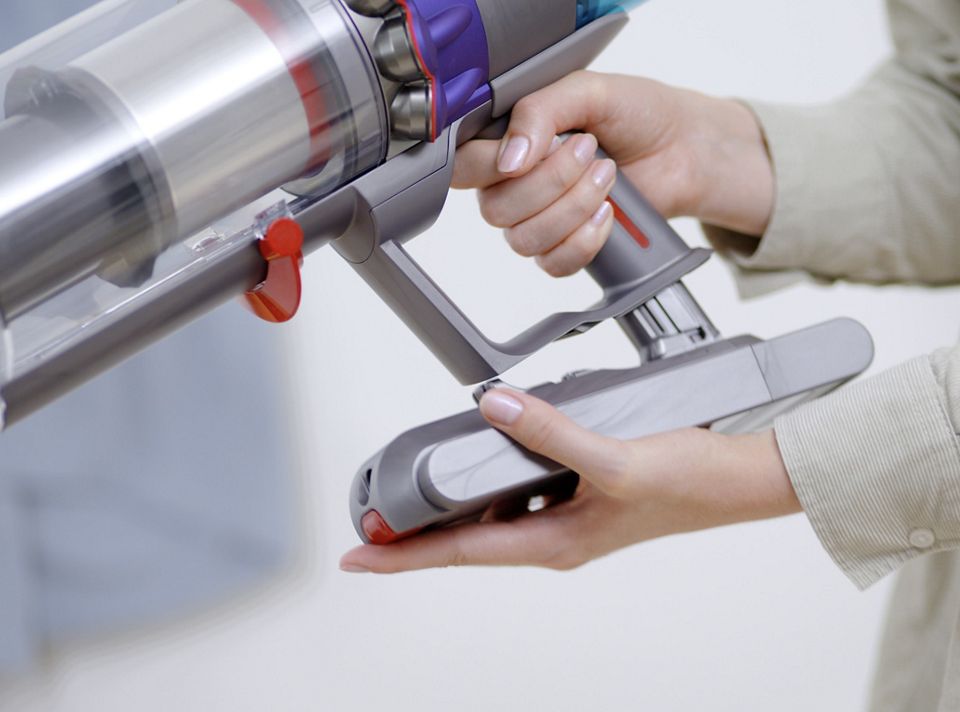

Charging the battery

You can charge your battery either on or off the machine – and either on or off the wall dock and floor dok. Use an additional battery to quickly swap batteries during use, for extra cleaning time. Simply press the red battery release button – and slide the fully charged battery into place.

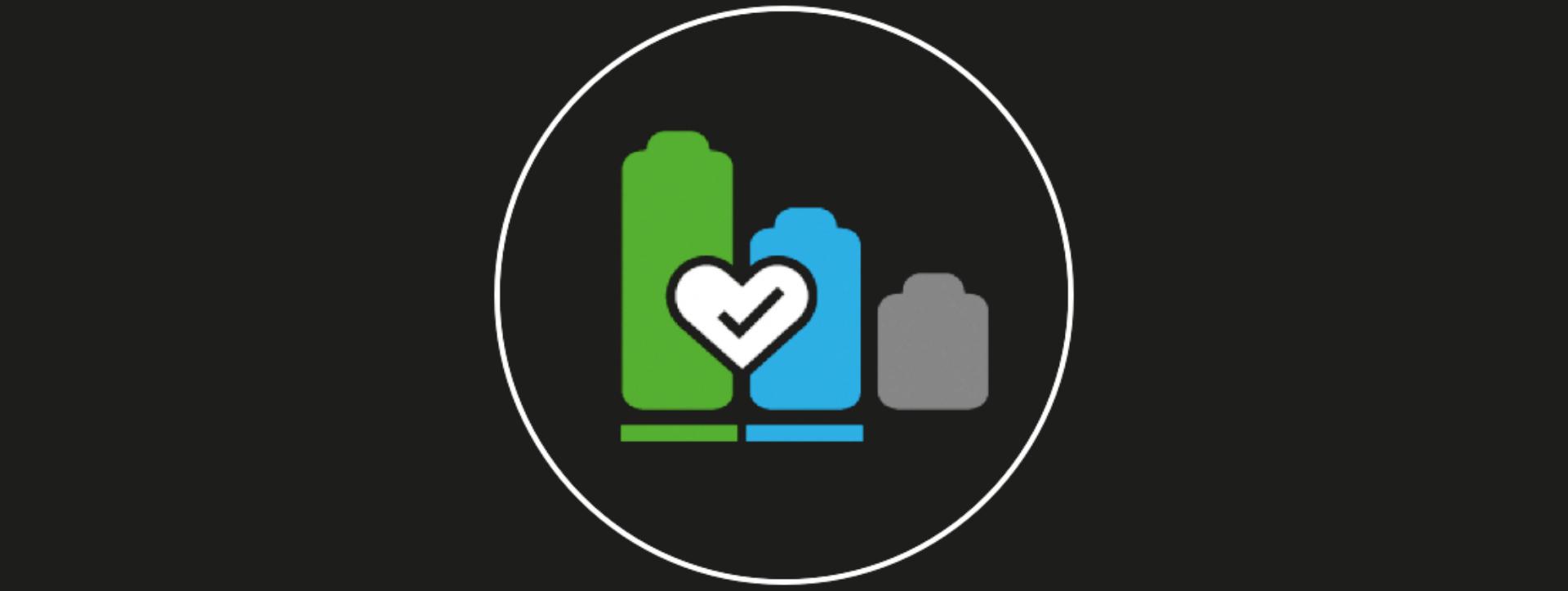

Getting the best out of your battery

Your battery is designed to be left plugged in, between cleans, so it's always ready to use.

  • Your battery is designed to be left plugged in, between cleans, so it's always ready to use.

  • When the green tick is displayed, your battery is fully charged and ready to use.

  • We recommend alternating batteries to prolong battery health.

FAQS about the battery and power modes

The LCD screen only uses up to 1.5 watts of power, which won't noticeably impact run time.

Both modes provide the optimal balance of power and run time. Auto mode works with all cleaner heads and the Dyson Hair screw tool, and automatically adjusts suction power to match the level of dust detected. Med mode is displayed instead of Auto mode when non-powered tools are attached, e.g. the Built-in dusting and crevice tool.

Maintenance

Maintaining your Dyson Gen5detect™ vacuum

Watch our maintenance guide for tips and step-by-step instructions on how to keep your machine performing at its best.

Looking after your filter

Your Dyson Gen5detect™ has a washable filter. Clean it regularly to prolong the filter's life and keep your machine performing at its best. Download the user manual for more information.

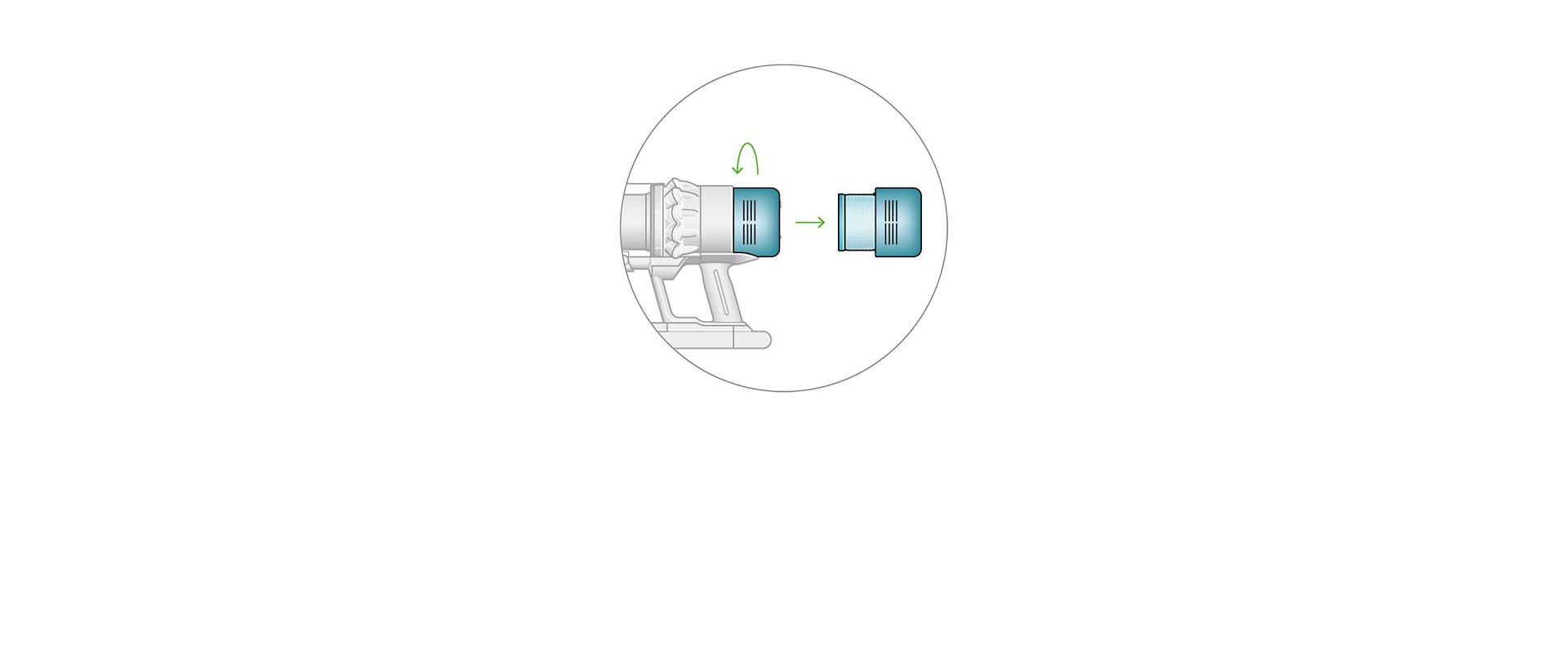

1. Twist and tap

Twist off your filter anti-clockwise, and pull it away from your machine. Tap it gently over a bin to remove loose dust. Run the tap with warm water, ready for the next step.

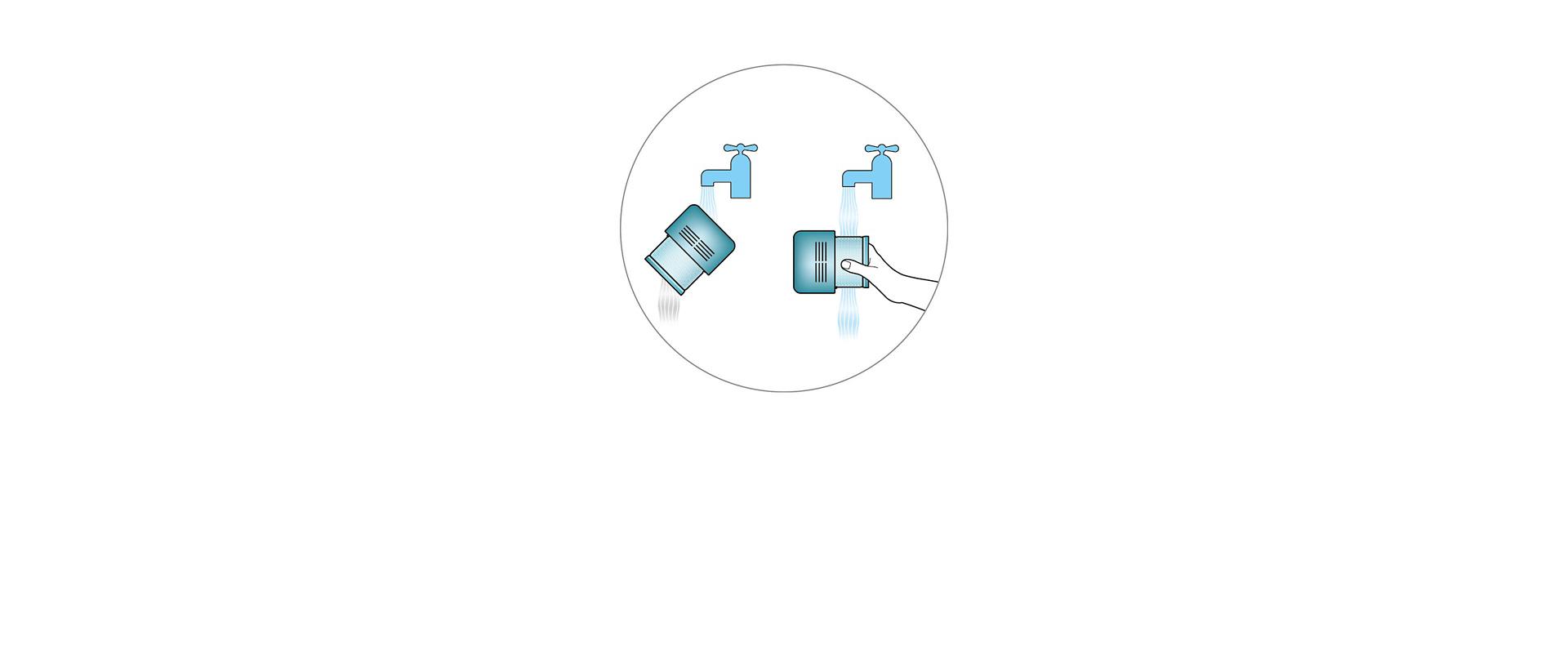

2. Rinse and wash

Wash the paper element of your filter first, foam facing downwards. Wash the foam element in the same way. Holding the filter on it's side, then run the water over the foam, gently rubbing your filter to remove the dirt. Repeat until the water runs clear.

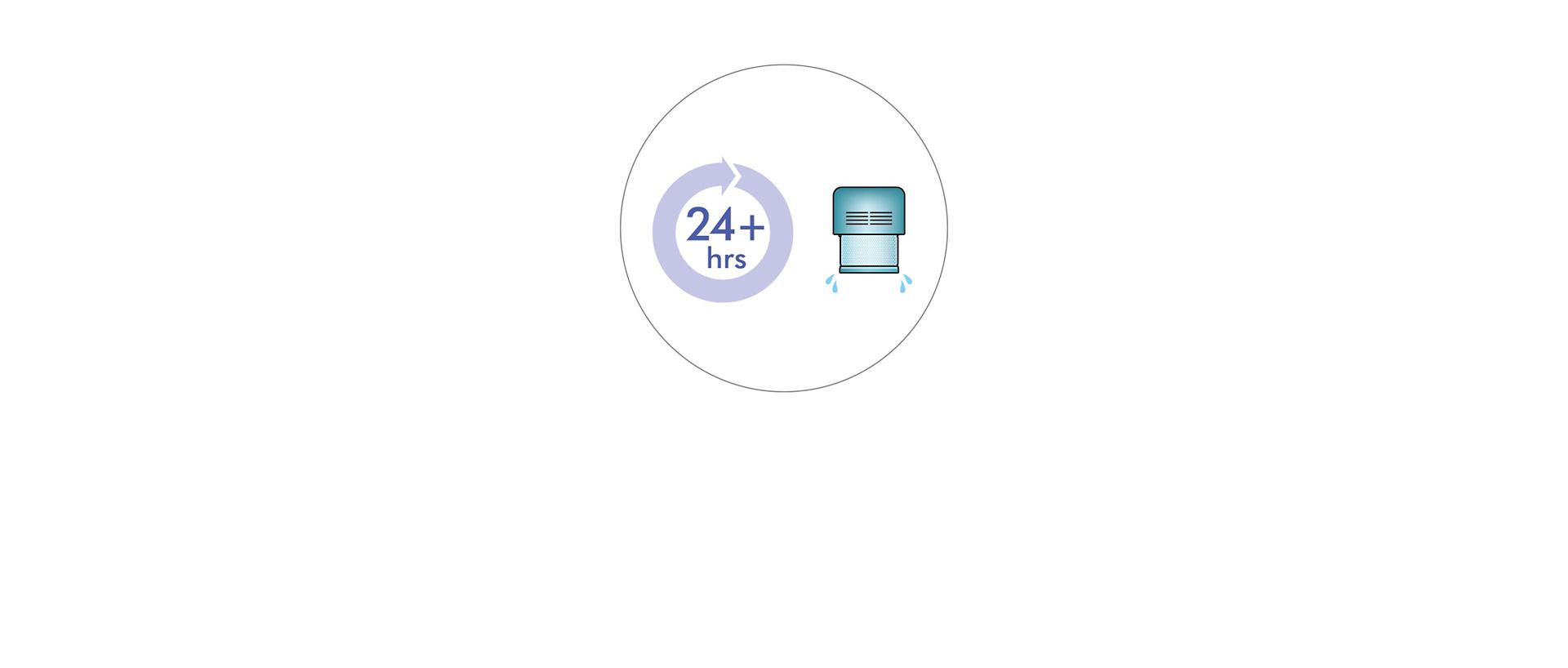

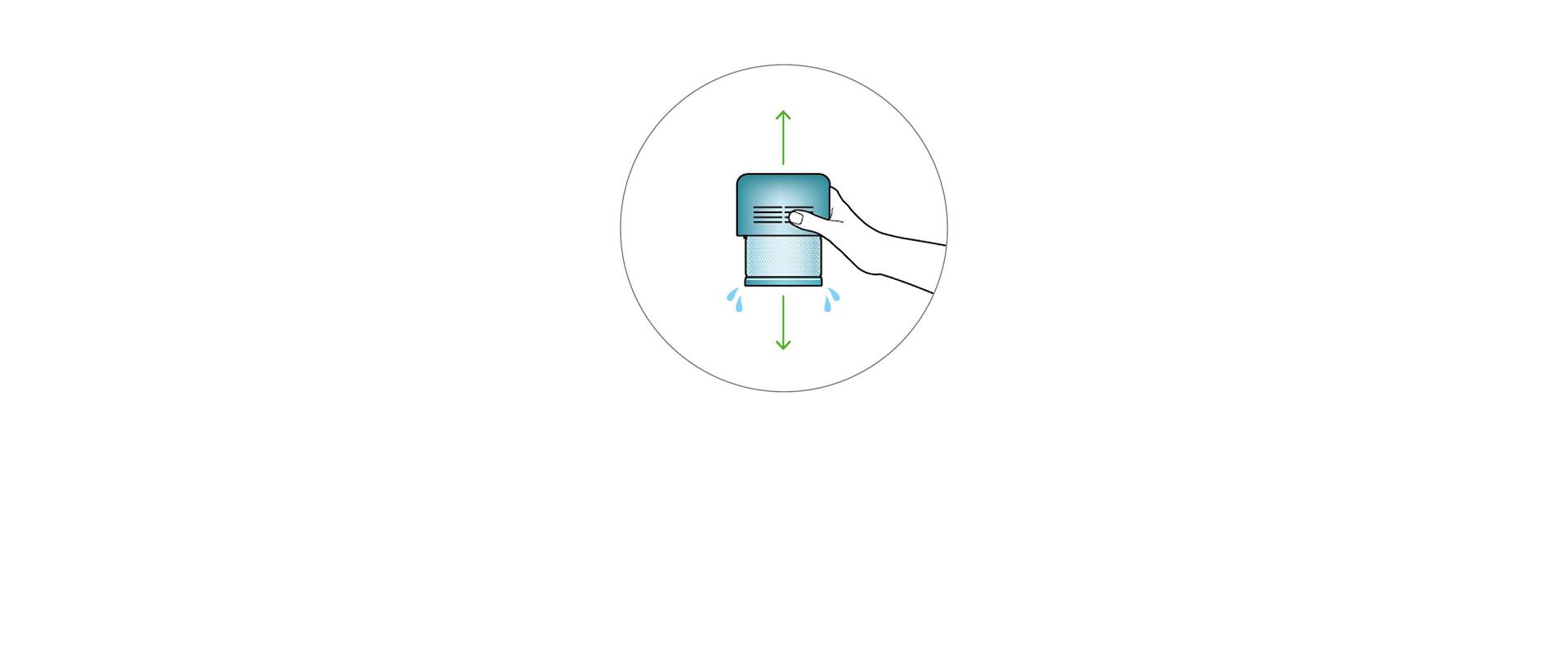

3. Shake and dry

Empty and shake until no more water comes from the filter. Place the filter on its end, and leave to dry in a warm, well-ventilated place for at least 24 hours. Now wash your hands with anti-bacterial soap.

4. Fit and click

Please note! Your machine can be damaged if used with a damp filter. Check the filter unit is completely dry. Position the filter unit in place on the main body and twist clockwise until it clicks into place.

Further maintenance tips

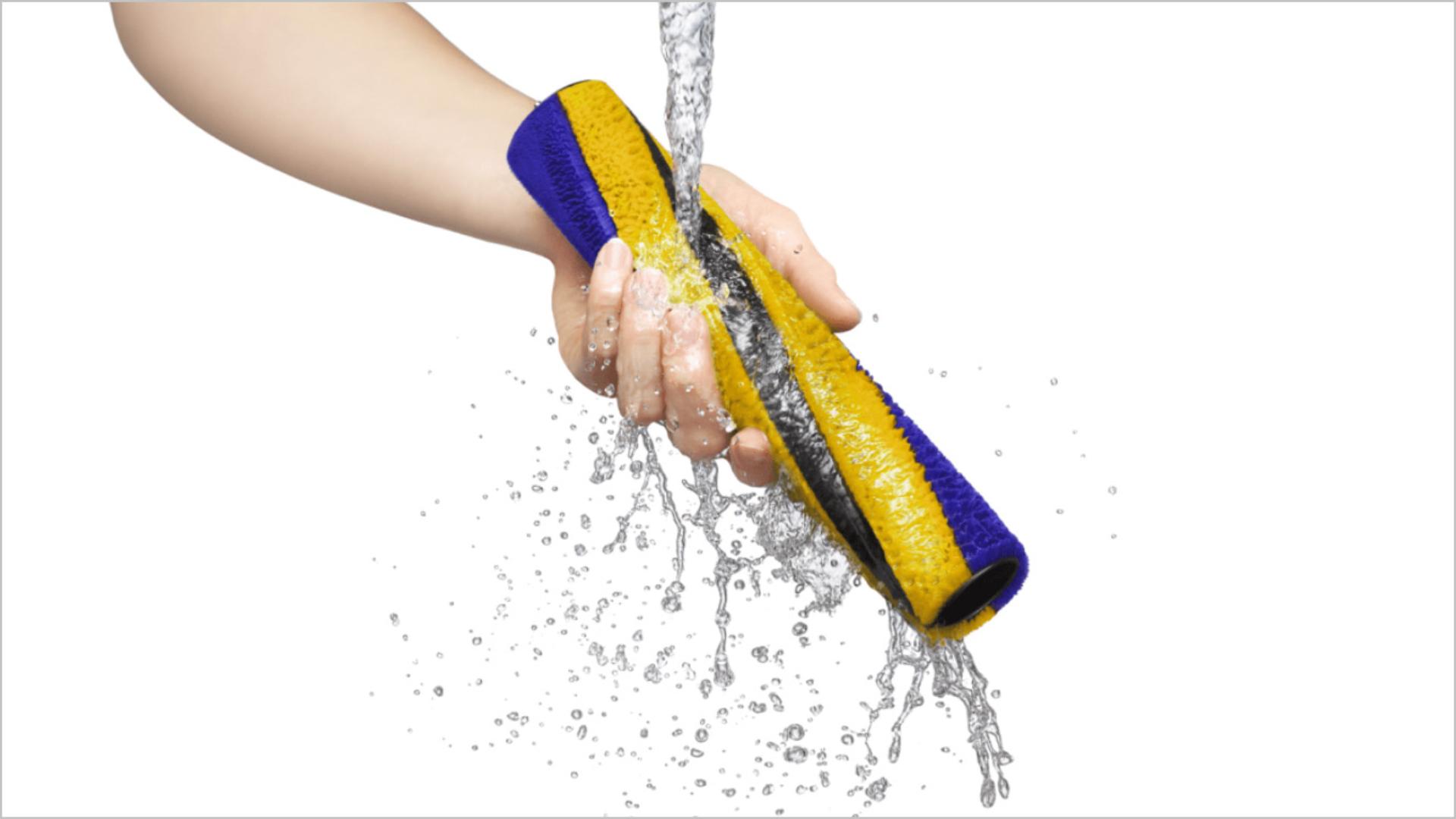

  • How to clean the Fluffy Optic™ brush bar

    You can wash your Fluffy Optic™ cleaner head's brush bar in warm water.

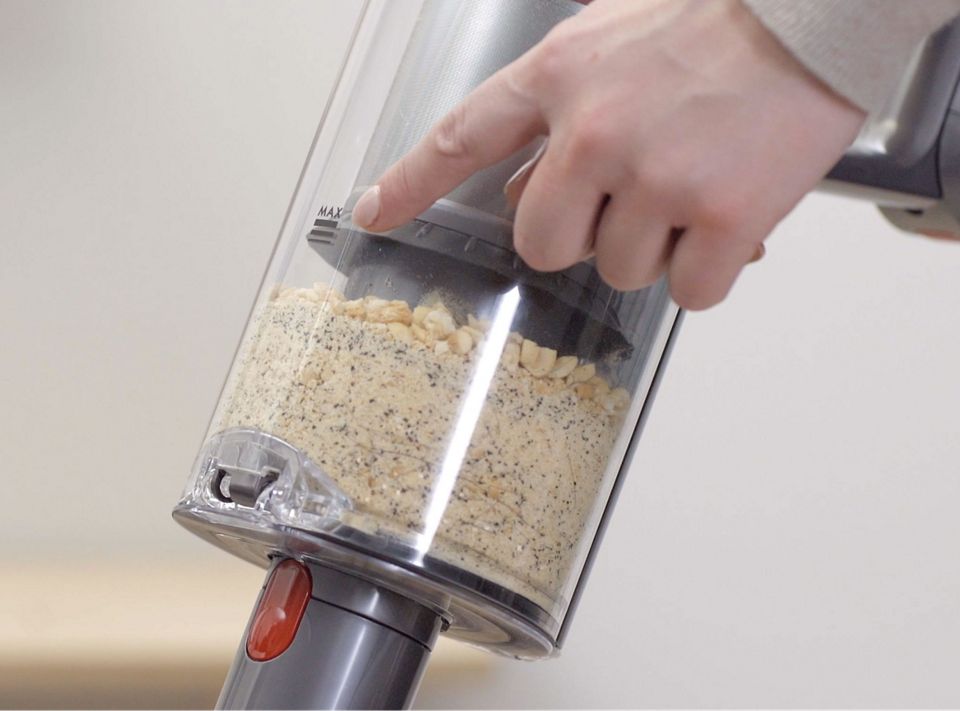

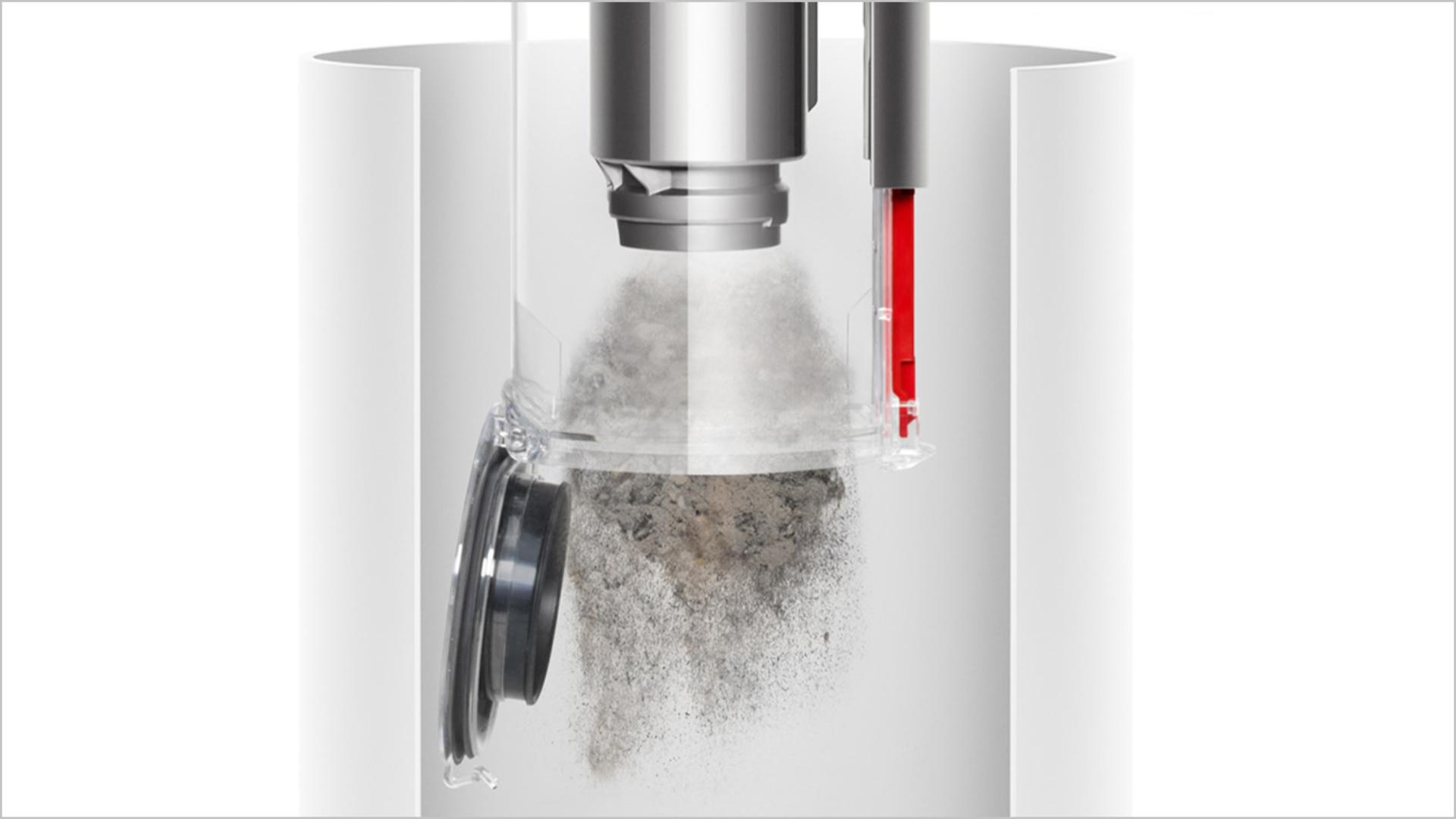

  • How to empty and clean the bin

    Overfilling the bin can reduce suction and affect the accuracy of the particle count. To maintain suction, empty as soon as debris reaches the MAX marker.

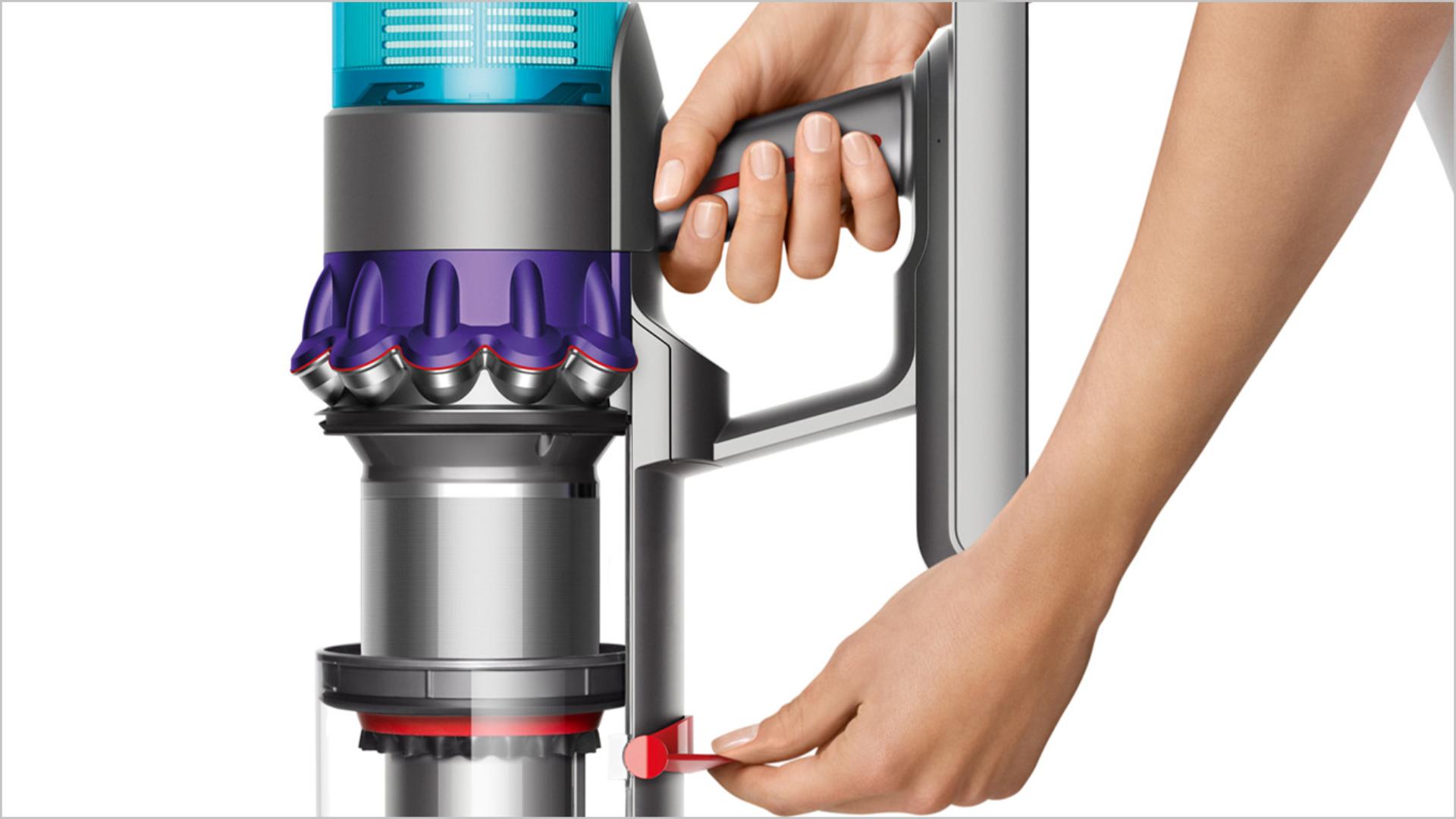

  • How to check for blockages

    Your LCD screen will alert you if there's a blockage in your machine's airways. On-screen animation shows you which airflow pathways to check.

FAQs about maintenance

Your machine will pulse seven times to alert you if there's a blockage. You can follow the animated guide on your LCD screen to clear it.

The LCD screen on your machine will remind you when it's time to clear your filter. This will usually be around once a month, but may be more frequent if you use your machine more heavily. After cleaning the filter, always leave it to dry for at least 24 hours. You must ensure it's completely dry before refitting. We recommend following the cleaning instructions and cleaning by hand. The filter is not suitable for dishwasher use.

Expert advice at the Dyson Demo Store

From help and advice about choosing the right Dyson vacuum cleaner, and tools and accessories for your home, to maintenance tips and more – just ask our Dyson Experts.

Learn about Dyson Demo Stores

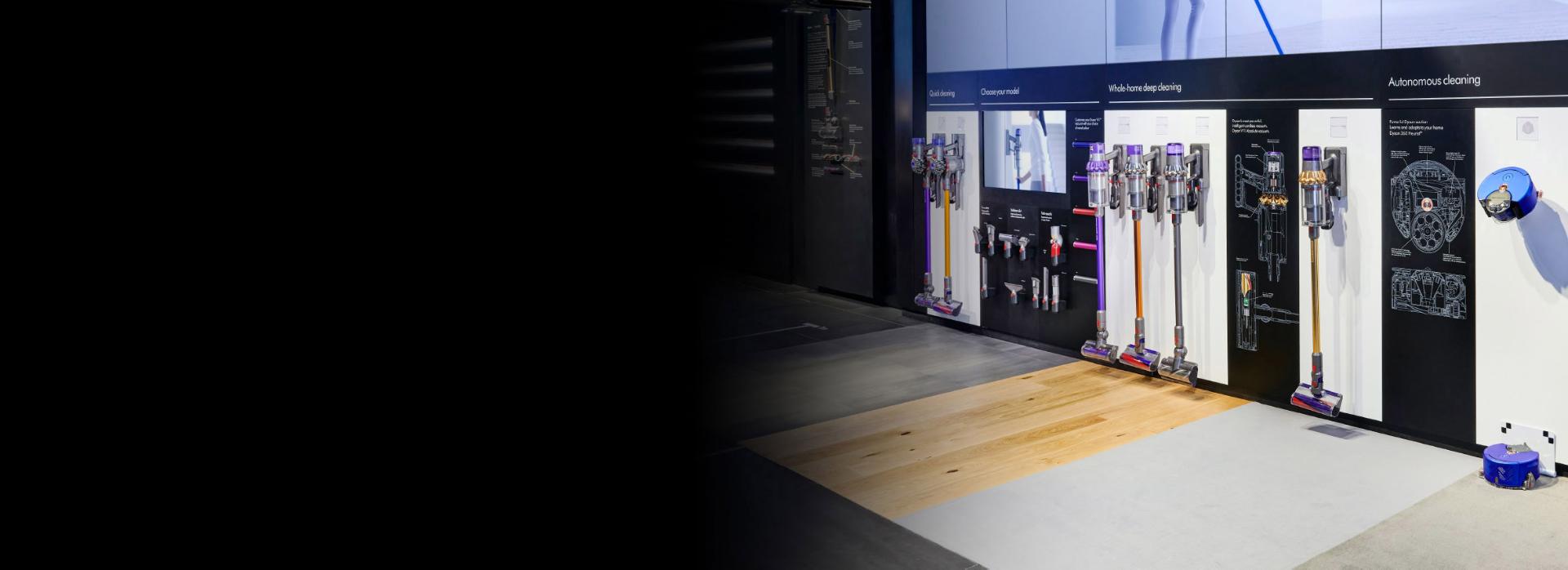

Dyson vacuums on display inside a Dyson Demo store.
